Features
• Cold resistant -40°C due to the special PVC jacket
• High transmission quality due to the use of OFC stranding with a large wire diameter of 2 x 0.30 mm²
• Very low capacity due to the PE insulation
• Good protection due to the dense copper braided shielding
• High flexibility makes it easy to wind
Applications
• Stage
• Mobile
• Installations
Cable Colour
• Black
• Blue
Technical Data
|

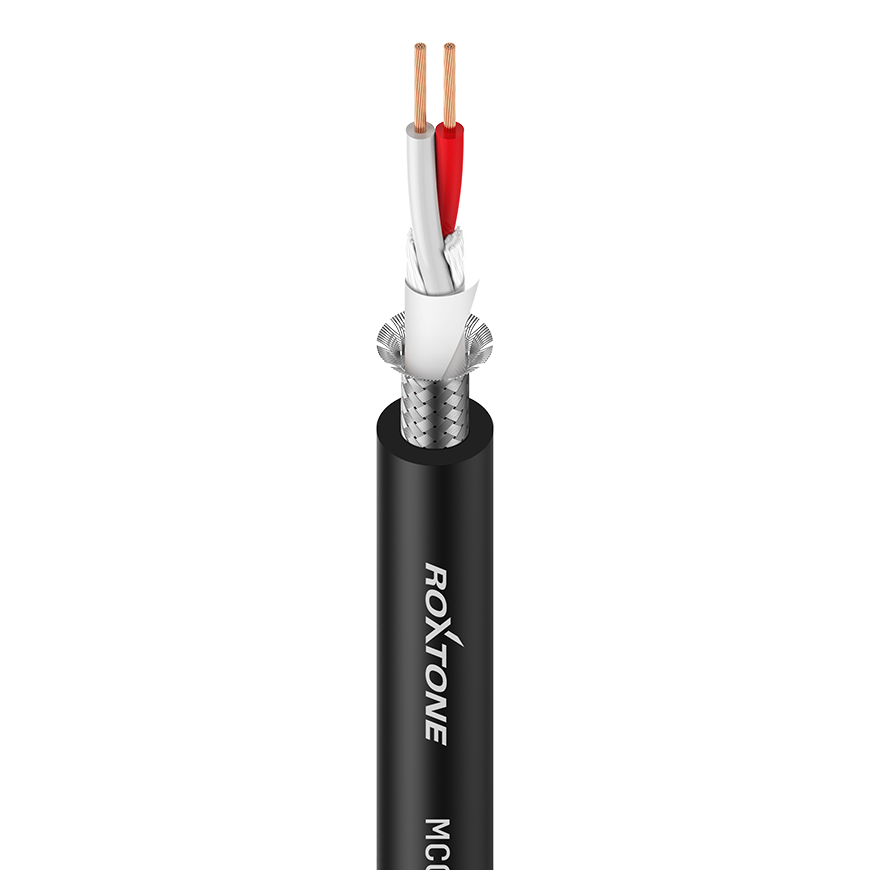

MC010CR
|
Jacket, diameter
|
Cold resistant PVC 6.5 mm
|
AWG
|
22
|
No. of inner conductors
|
2 x 0.30 mm²
|
Copper strand per conductor
|
38 x 0.10 mm
|
Conductor insulation
|
PE 1.50 mm
|
Shielding
|
tin plated copper spiral
shielding with 80 x 0.10 mm
+ AL fleece
|
Shielding factor
|
95%
|
Temperature range
|
min. -40°C
|
Temperature range
|
max. +70°C
|
Packaging
|
100/300 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
56 pF
|
Capac. cond./shield. per 1 m
|
122 pF
|
Cond. resistance per 1 m
|
56 mΩ
|
Shield. resistance per 1 m
|
23.5 mΩ
|
|
|
