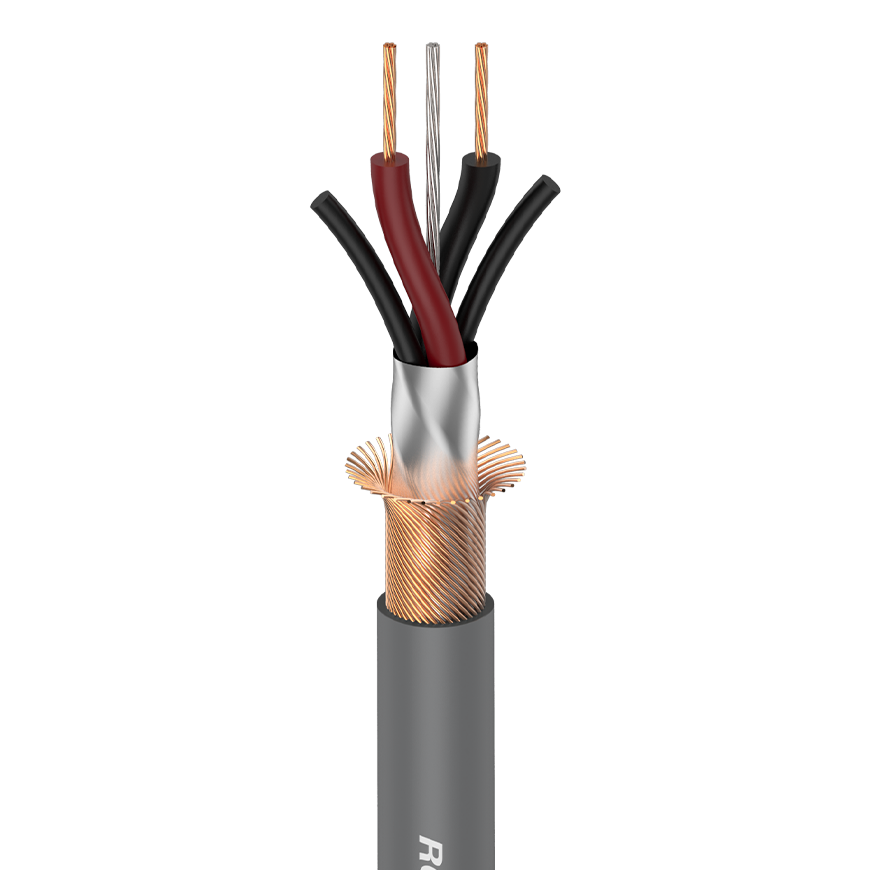

AES/EBU & DMX Cable – 24AWG – 2 x 0.22 mm²
AES/EBU & DMX Cable – LSZH Version
| Jacket, diameter | LSZH 5.2 mm |
| AWG | 24 |
| No. of inner conductors | 2 x 0.22 mm² |
| Copper strand per conductor | 7 x 0.20 mm |
| Conductor insulation | Flame retardant PE |
| Drain wire | Tin plated copper 10 x 0.15 mm |
| Shielding | Copper spiral shielding with 80 x 0.10 mm + AL/PT-foil+ PE filler |
| Shielding factor | 100% |
| Temperature range | Min.-40 °C |
| Temperature range | Max. +90 °C |
| Packaging | 100/300 m roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| DMX001LL1000BK | 100 m/Roll | 4 | 0.031 |
| DMX001LL3000BK | 300 m/Roll | 0.000 |
| Capac. cond./cond. per 1 m | 67 pF |
| Capac. Cond./shield. per 1 m | 125 pF |
| Cond. resistance per 1 m | 82 mΩ |
| Shield. resistance per 1 m | 24 mΩ |
