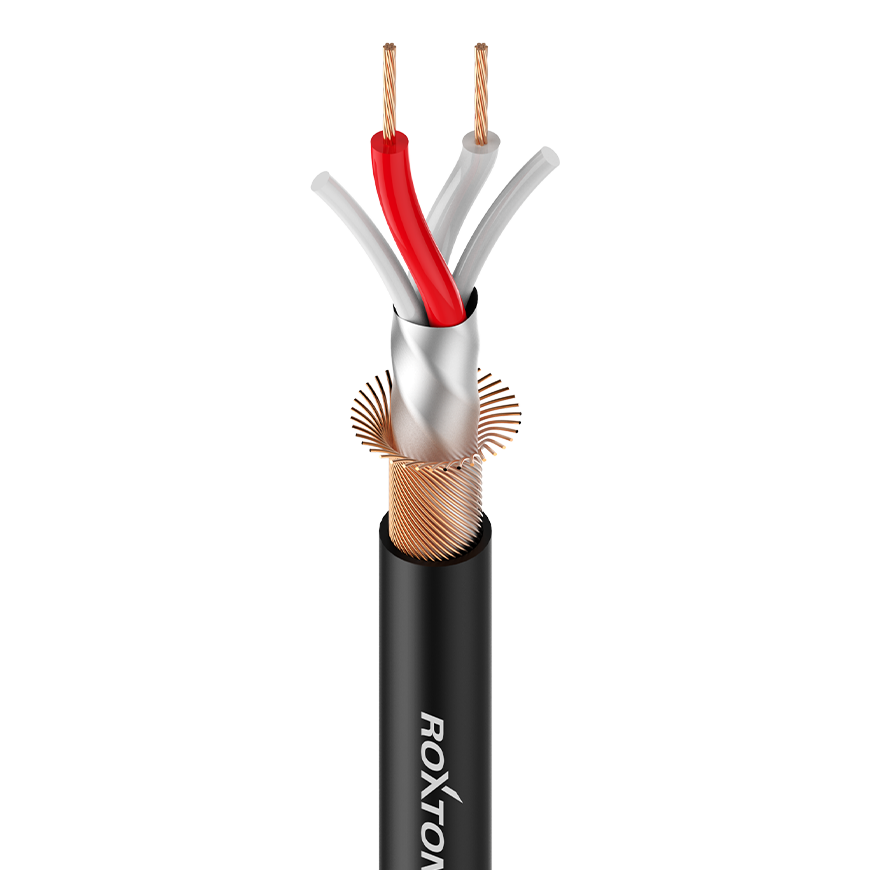

AES/EBU & DMX Cable – 24AWG – 2 x 0.22 mm²
AES/EBU & DMX Cable
| Jacket, diameter | PVC 6.5 mm |
| AWG | 22 |
| No. of inner conductors | 2 x 0.34 mm² |
| Copper strand per conductor | 7 x 0.25 mm |
| Conductor insulation | PE 1.70 mm |
| Shielding | Copper spiral shielding with 80 x 0.10 mm + AL/PT-foil+ PE filler |
| Shielding factor | 100 % |
| Temperature range | Min. -20 °C |
| Temperature range | Max. +70 °C |
| Packaging | 100/300 m roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| DMX002L1000BK | 100 m/Roll | 4 | 0.037 |
| DMX002L3000BK | 300 m/Roll | 1 | 0.032 |
| Capac. cond./cond. per 1 m | 52 pF |
| Capac. cond./shield. per 1 m | 105 pF |
| Cond. resistance per 1 m | 55 mΩ |
| Shield. resistance per 1 m | 27 mΩ |
