6.3mm Mono Plug, Nickel Plated Housing / Black Housing

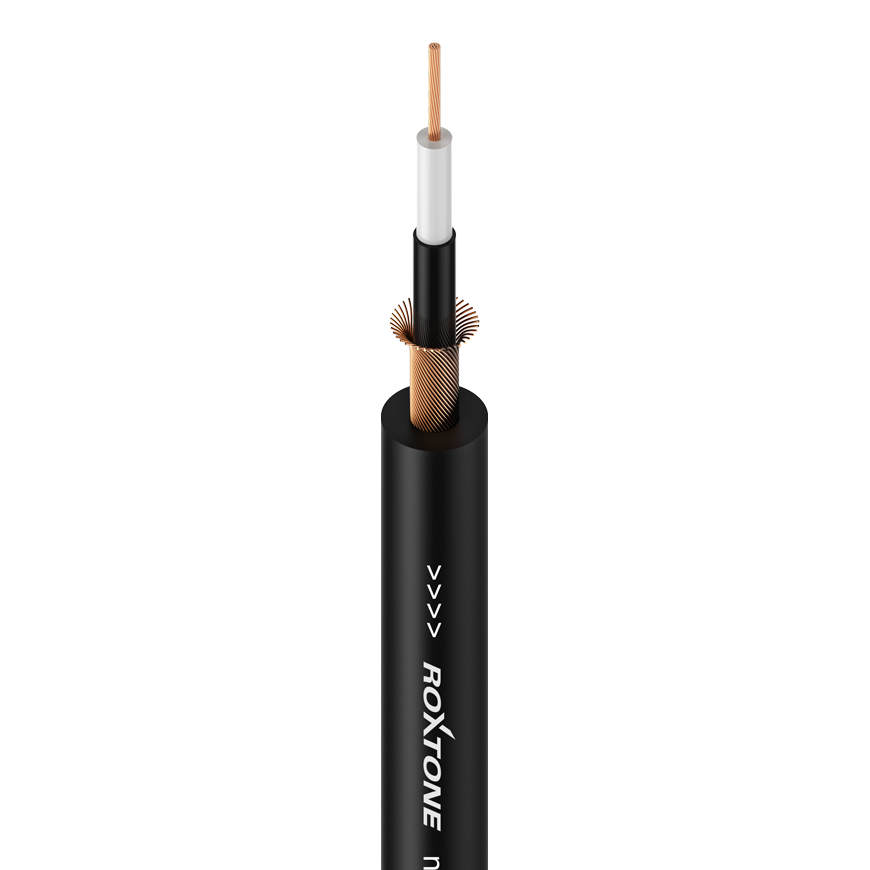

Instrument Cable - HIGH GAIN
| Jacket, diameter | PVC 6.0 mm |
| AWG | 24 |
| No. of inner conductors | 1 x 0.22 mm² |
| Copper strand per conductor | 28 x 0.10 mm |
| Conductor insulation | PE 1.95 mm |
| Shielding | copper spiral shielding with 48 x 0.10 mm + semiconductor |
| Shielding factor | 100 % |
| Temperature range | min. -20 °C |
| Temperature range | max. +70 °C |
| Packaging | 100/300 m roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| GC010L1000BK | 100 m/Roll | 4 | 0.037 |
| GC010L3000BK | 300 m/Roll | 1 | 0.026 |
| Capac. Cond./shield. Per 1 m | 103 pF |
| Cond. Resistance per 1 m | 76 mΩ |
| Shield. Resistance per 1 m | 52.5 mΩ |
