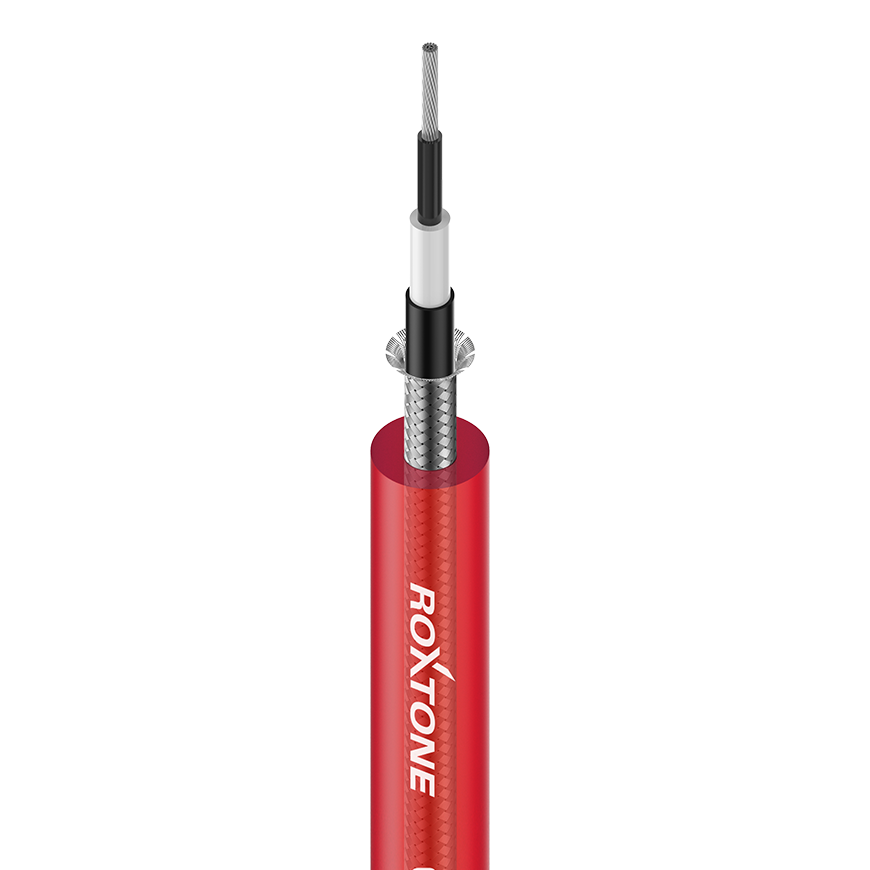

Matt Transparent Instrument Cable - SOLO

GC060T

20AWG – 1 × 0.5 mm²

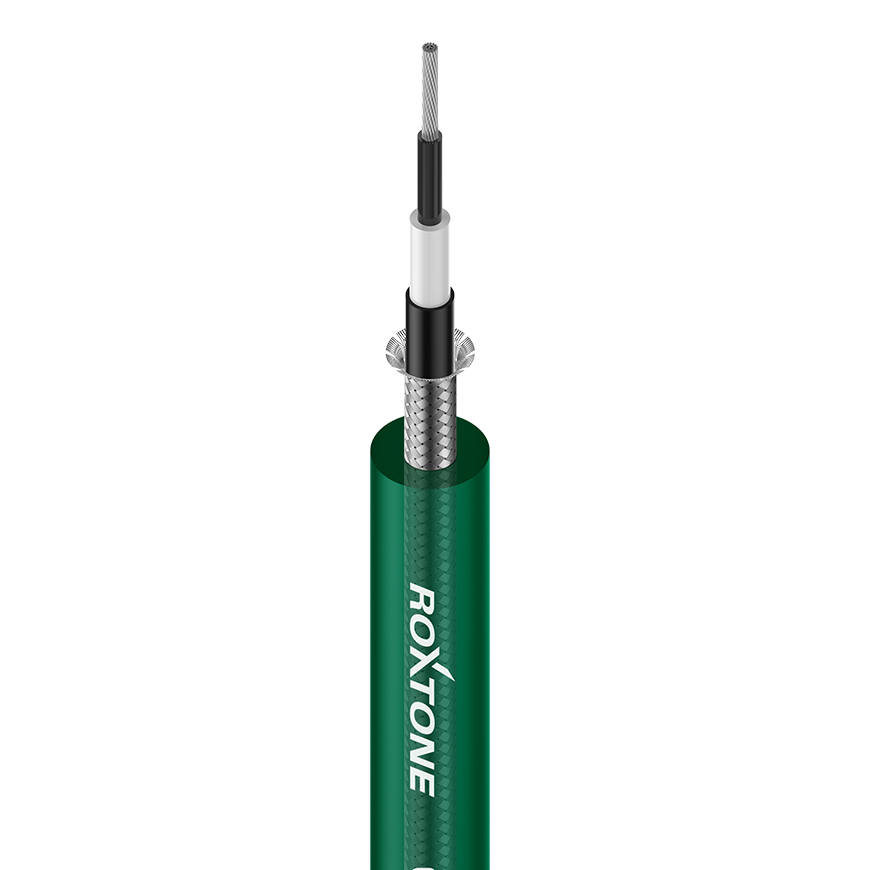

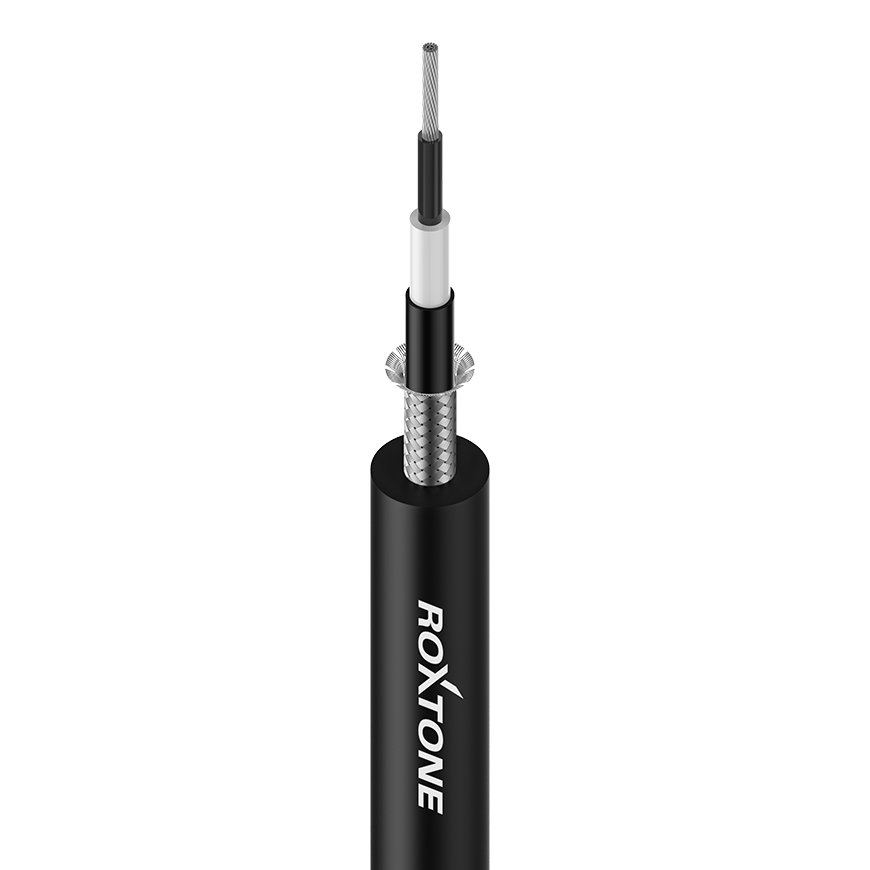

Color

Applications: High quality guitar cable for studio and stage, Connection of stereo video recorder and DAT-recorder, Unbalanced cable for keyboards, samplers, mixing boards, etc.

Product Type: Bulk Instrument Cables

Features

Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm²
Double shielding due to the combination of copper braided shield and semiconductor shielding
Very flexible and easy to wind due to the use of fine individual stranding
Durability and robustness due to a special high quality PVC for the jacket
Strain relief and good protection against bending due to the thick PVC-jacket

Technical Data

Jacket, diameter	PVC 7.0 mm
AWG	20
No. of inner conductors	1 x 0.5 mm²
Copper strand per conductor	28 x 0.15 mm tin plated copper
Conductor shielding	PE semiconductor 1.3mm
Conductor insulation	Foamed PE 3.2 mm
Shielding	Tin plated copper braided shielding with 128 x 0.10 mm+ PVC semiconductor
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. +70 °C
Packaging	100 m roll

Packaging Data

Order Code	Length	Carton QTY (PCS)	Carton Volume (m³)
GC060TL1000TRD	100 m/Roll	2	0.024
GC060TL1000TBN	100 m/Roll	2	0.024
GC060TL1000TPL	100 m/Roll	2	0.024
GC060TL1000TOG	100 m/Roll	2	0.024
GC060TL1000TBU	100 m/Roll	2	0.024
