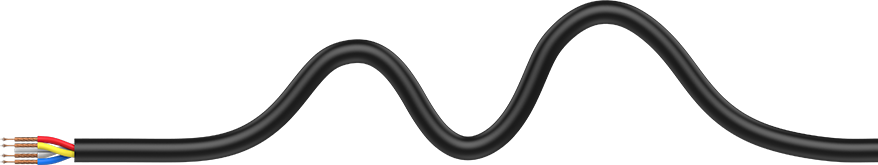

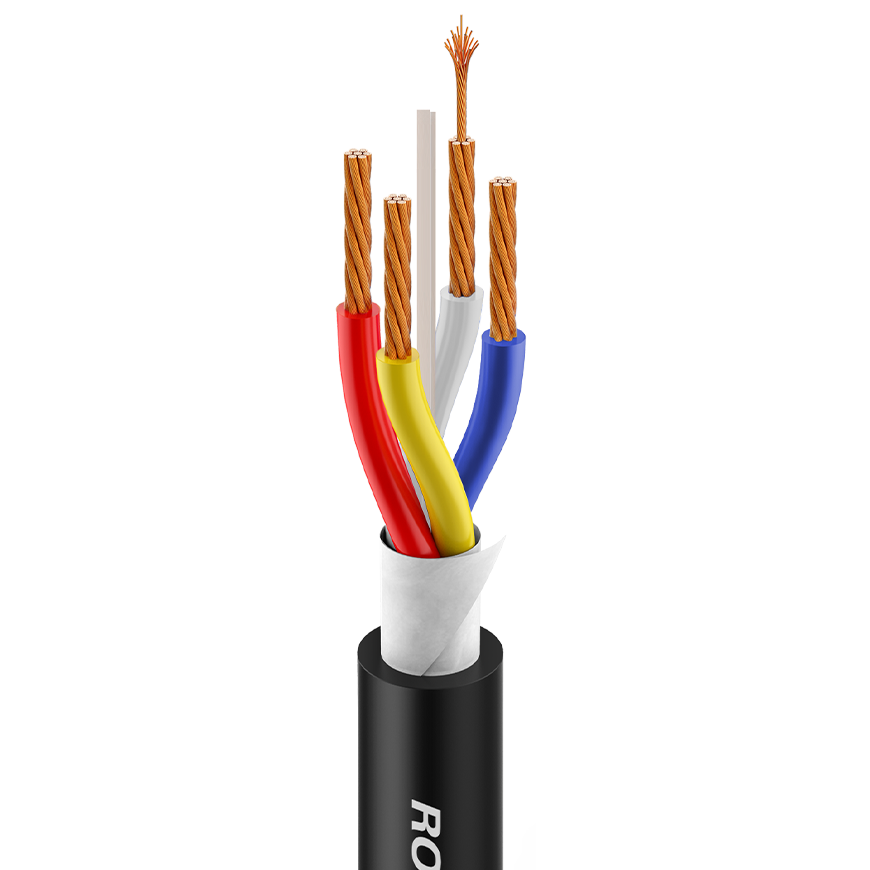

HFSC425

Highly Flexible Speaker Cable

HFSC425

14AWG – 4 x 2.5 mm²
Color
Applications: Professional PA/sound systems, Surround and woofer systems, For fixed installation in building technology
Product Type: Bulk Speaker Cables

Features

  • The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
  • Soft PVC jacket and inner conductors twisted grant a perfect winding

Technical Data

Jacket, diameter PVC 12.0 mm
AWG 14
No. of inner conductors 4 x 2.5 mm²
Copper strand per conductor 318 x 0.10 mm
Cond. PVC insulation, diameter 3.4 mm
Temperature range Min. -20 °C
Temperature range Max. +70 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
HFSC425L1000BK 100 m/Roll 1 0.037
HFSC425L3000BK 300 m/Roll

Electrical Data

Capac. cond./cond. per 1 m 100 pF
Cond. resistance per 1 m 6.8 mΩ
