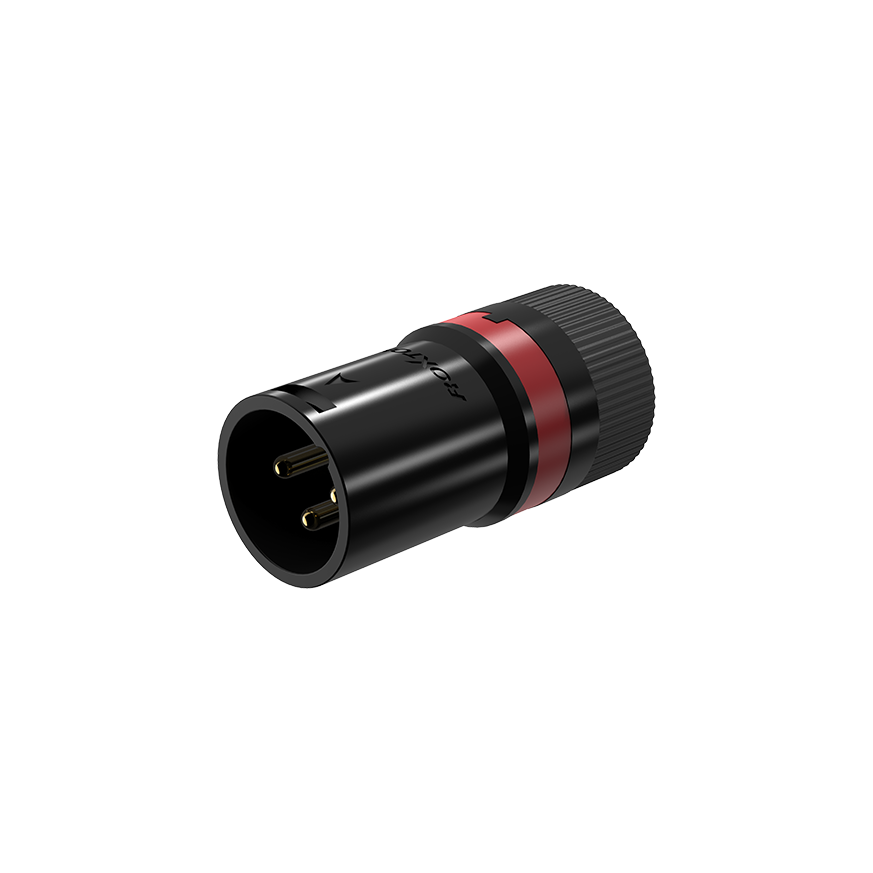

LX3MH

Solid Metal Shell - Low Profile Rotatable XLR Male

LX3MH

Features

  • Low profile and neat design, space saving
  • High damping 100° up or down rotatable bushing design, ensure clean and tidy wiring
  • Screwless convenient for personalized DIY assemble and repair
  • TPE soft cable exit hole for cable diameter from 3mm to 6mm
  • 24K gold-plated contacts, guarantee stable signal transmission
  • Patent-protected

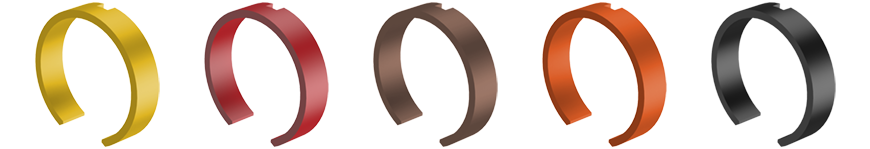

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PA6 30%GF
Contacts Brass
Contacts plating Gold
Bushing PA6 20%GF, TPE
Color ring PA6 20%GF
Rotatable Degree 200° (up or down 100°)

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)
LX3MH 300 0.050

Download

Low Profile Rotatable XLR Application & Assembly Instruction

pdf - 2100KB

related products

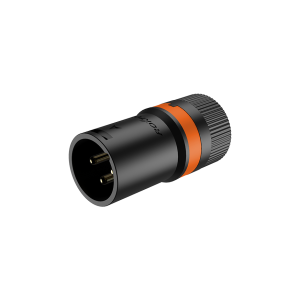

LX3M
