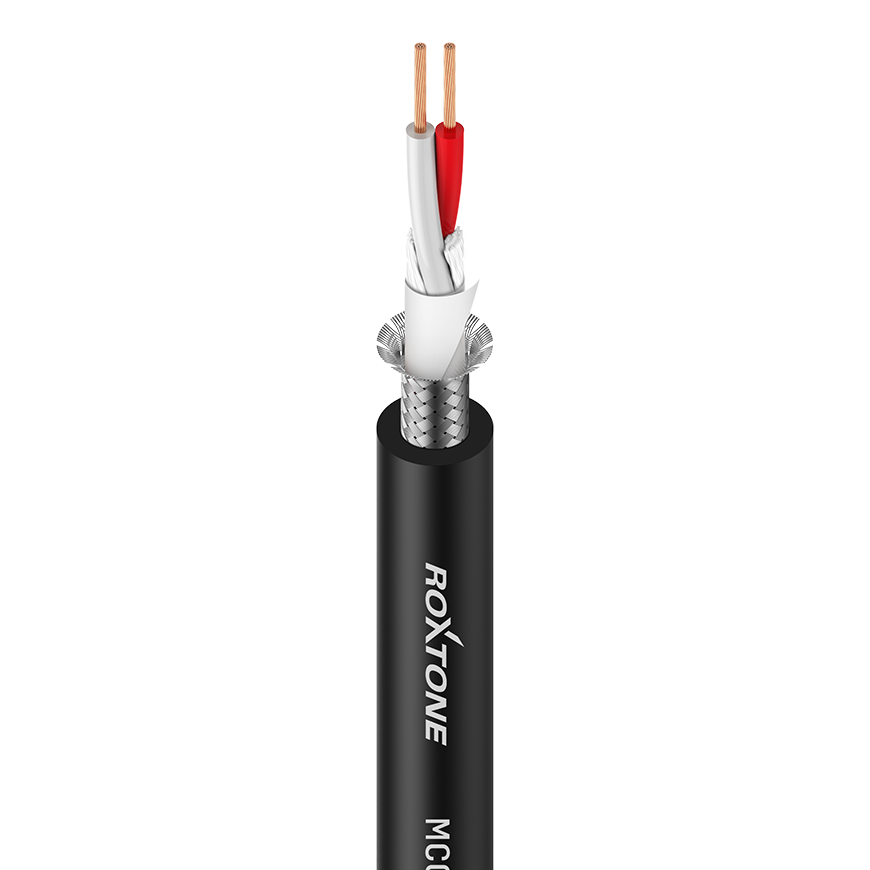

Cold Resistant -40°C Microphone Cable

MC010CR

22AWG – 2 x 0.30 mm²

Color

Applications: Stage, Mobile, Installations

Cold resistant -40°C due to the special PVC jacket
High transmission quality due to the use of OFC stranding with a large wire diameter of 2 x 0.30 mm²
Very low capacity due to the PE insulation
Good protection due to the dense copper braided shielding
High flexibility makes it easy to wind

Jacket, diameter	Cold resistant PVC 6.5 mm
AWG	22
No. of inner conductors	2 x 0.30 mm²
Copper strand per conductor	38 x 0.10 mm
Conductor insulation	PE 1.50 mm
Shielding	tin plated copper spiral shielding with 80 x 0.10 mm+ AL fleece
Shielding factor	95%
Temperature range	min. -40°C
Temperature range	max. +70°C
Packaging	100/300 m roll
