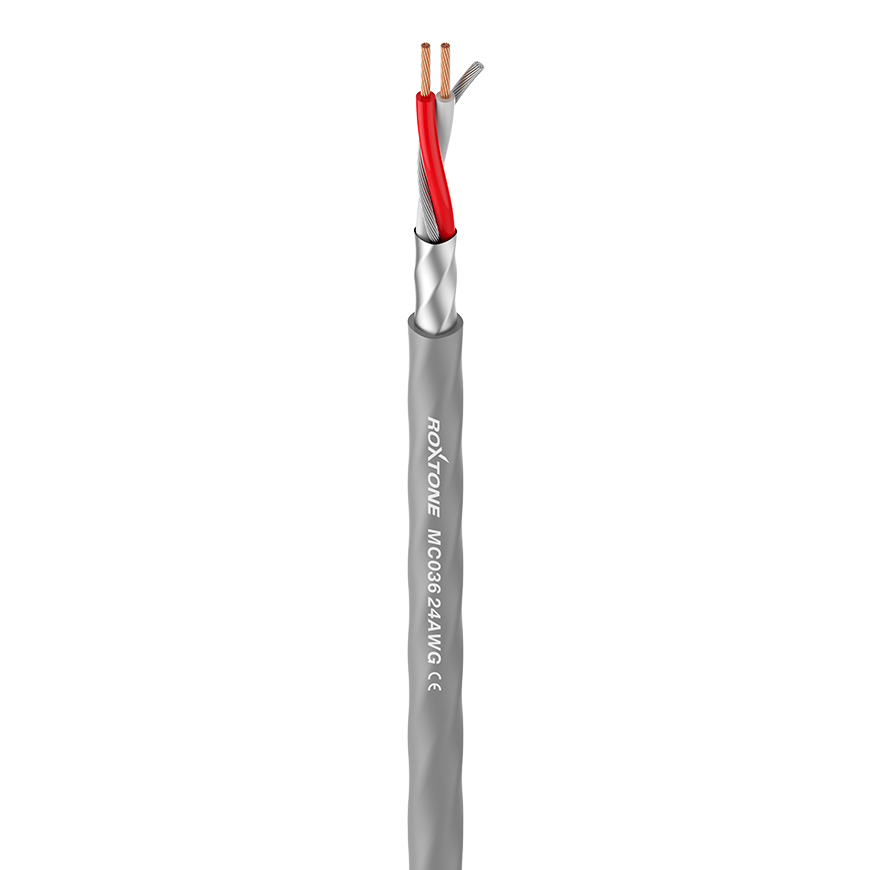

MC036

Balanced Patch Cable for Installation

MC036

24AWG – 2 x 0.22 mm²
Color
Applications: Internal wiring of racks, audio and HiFi components
Product Type: Bulk Microphone Cable

Features

  • Very thin PVC jacket with a diameter of 3.7 mm, suitable for the wiring inside thecabinet, save more space
  • Durability due to the special robust PVC jacket
  • Use special LLDPE for the insulation, ensure a good electrical performanceand tensile strength
  • Wonderful shielding 100% provided by AL fleece and drain wire
  • Highly flexible due to a professional stranded wire technology

Technical Data

Jacket, diameter PVC 3.7 mm
AWG 24
No. of inner conductors 2 x 0.22 mm²
Copper strand per conductor 20 x 0.12 mm
Conductor insulation LLDPE 1.40 mm
Drain Wire 25 x 0.12mm Tin copper
Shielding AL fleece
Shielding factor 100%
Temperature range min. -20°C
Temperature range max. +70°C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
MC036L1000BK 100 m/Roll 6 0.034
MC036L3000BK 300 m/Roll 4 0.037

Electrical Data

Capac. cond./cond. per 1 m 52 pF
Capac. cond./shield. per 1 m 108 pF
Cond. resistance per 1 m 80 mΩ
Shield. resistance per 1 m 52 mΩ
