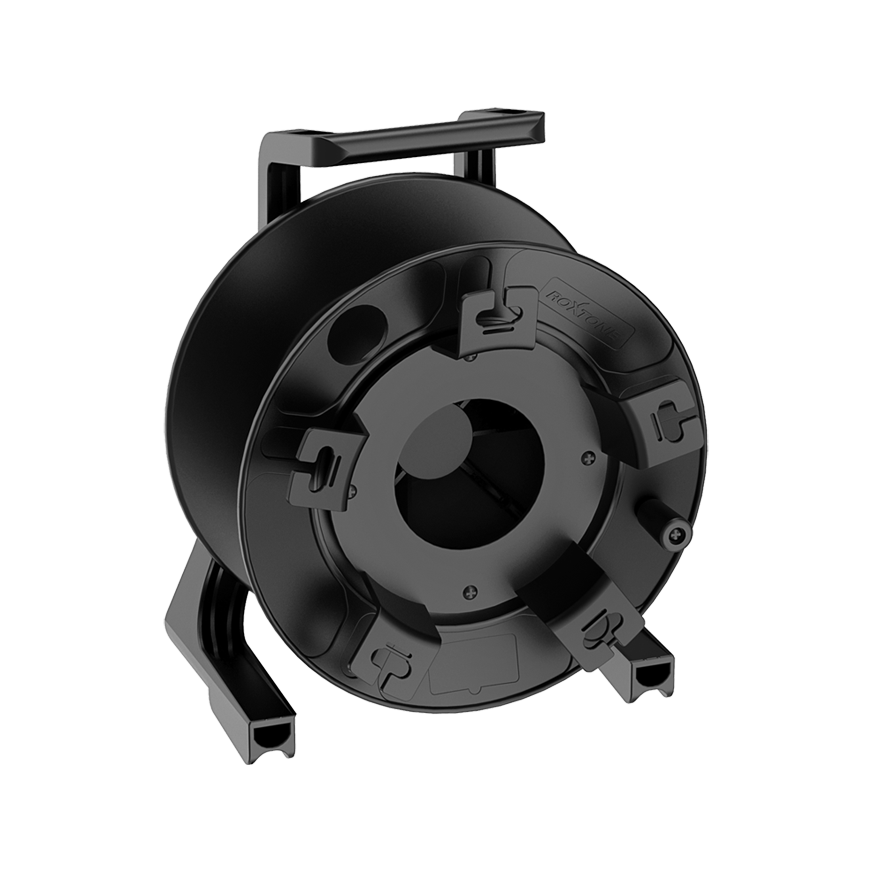

Professional Unbreakable Cable Drum

PCD310

winder – Ø 310 mm
Product Type: Cable Drum System

Features

  • Professional unbreakable cable drum which is designed and developed by ROXTONE itself, suitable for various of long cables.
  • Frame is made from robust PC (Polycarbonate) with integrated handle and brake, drum is made from a special PE composite materials with detachable cable feeder.
  • It has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.
*Capacity depends on different outer diameter of cables
Diameter Length
∅3.0mm 628m
∅5.0mm 226m
∅6.0mm 157m
∅6.5mm 134m
∅7.0mm 115m
∅8.0mm 88m
∅9.0mm 70m
∅10.0mm 57m
∅11.0mm 47m
∅14.0mm 29m

Order Code: PCD310
Carton QTY: 1 PC
Carton Volume: 0.034 m³

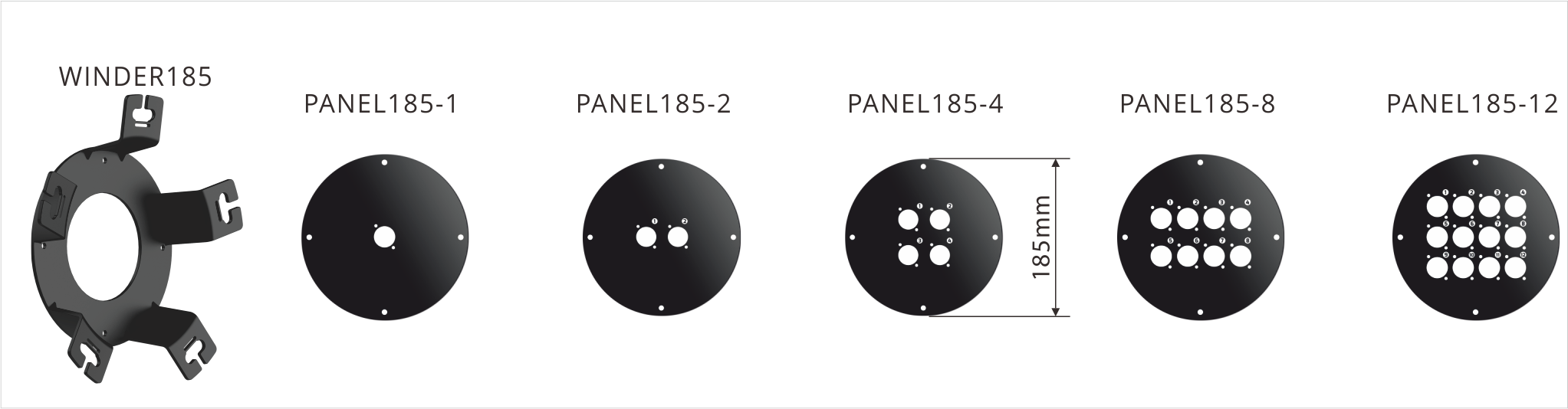

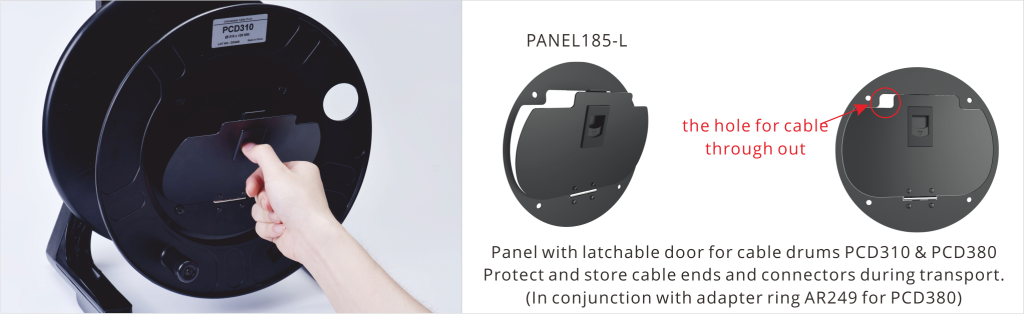

Accessories

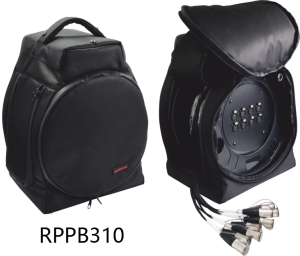

Protective Bag for PCD310 Cable Drum

Engineering Drawing

related products

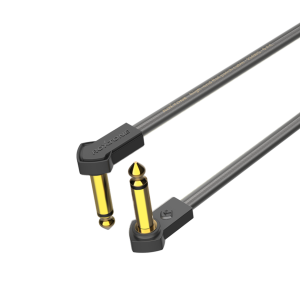

High End flat patch audio cable
