PJ2RX-PURE

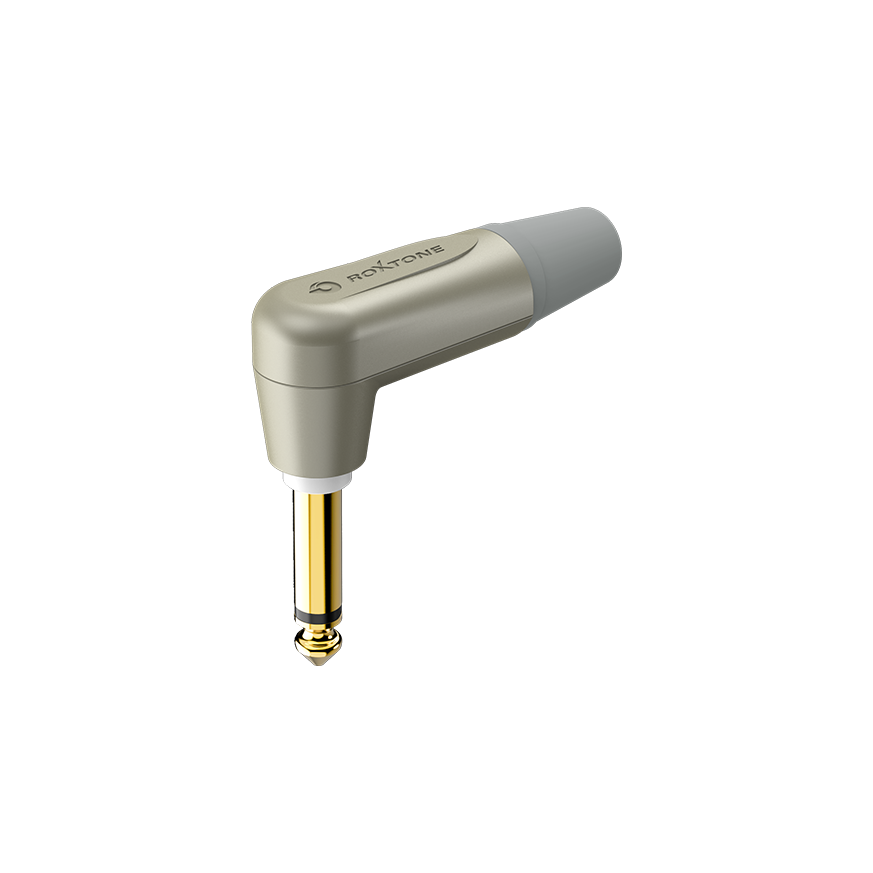

PUREPLUG, 6.3mm Right Angle Mono Plug

PJ2RX-PURE

Features

  • Avoid pops and squeals automatically when changing the instruments under load
  • Patents protected with PURE CORE Technology
  • Pure bronze and mechanical structure switch system guarantee the longer lifetime using beyond 150,000 mating cycles
  • Pure brass contact and more thick sleeve tube 0.5mm supply the more pure sound
  • Reliable chuck type cable strain-relief clamp fix the cable more tight and up to 7.5mm cable
  • Classic and simple design with patents protection

Patents#

Invention 201810207321.7
Utility model 201820344006.4
Appearance 201830506386.2
Appearance 201830506384.3

Technical Data

Housing Zinc alloy diecast
Insulation PBT 15%GF
Contacts Brass
Contacts plating Gold
Bushing PA 30%GF & TPE

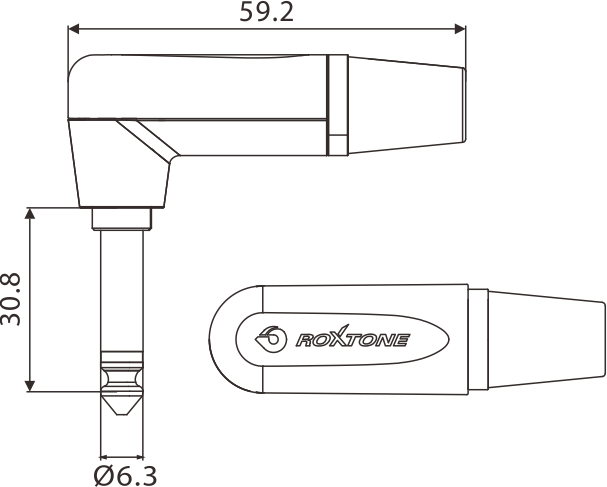

Engineering Drawing

Packaging Data

Order Code     Carton QTY
(PCS)		     Carton Volume
(m³)		 Description
PJ2RX-SG-PURE 400 0.050 6.3mm mono plug, Satin nickel housing / Gold plated contacts
