PJ2X

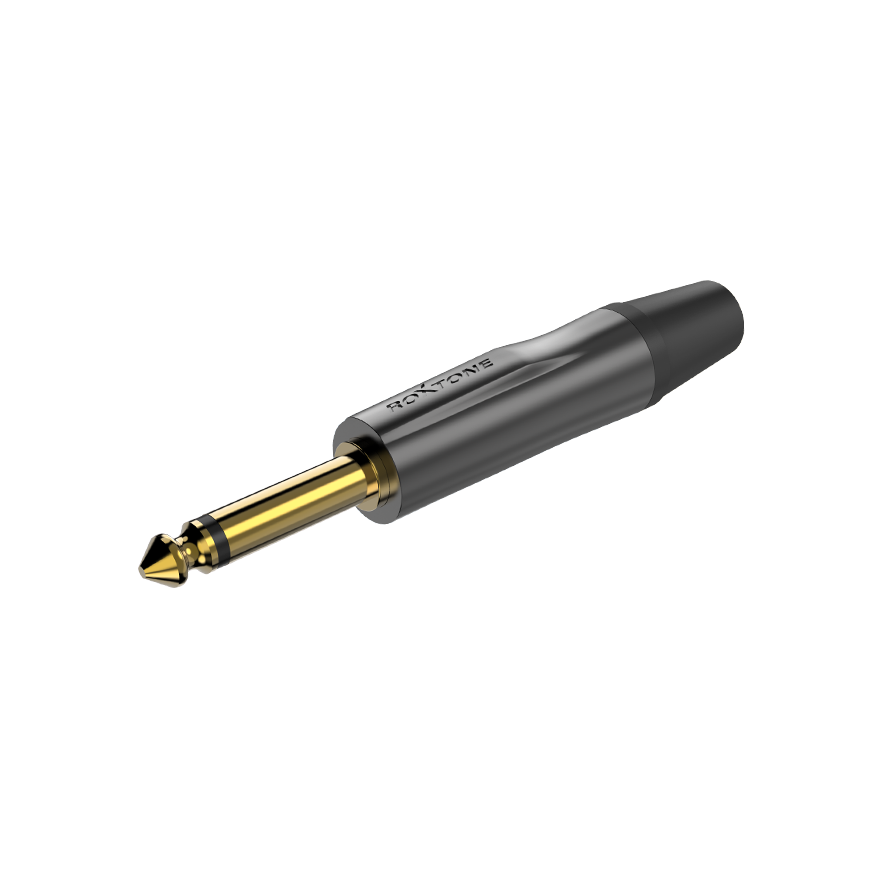

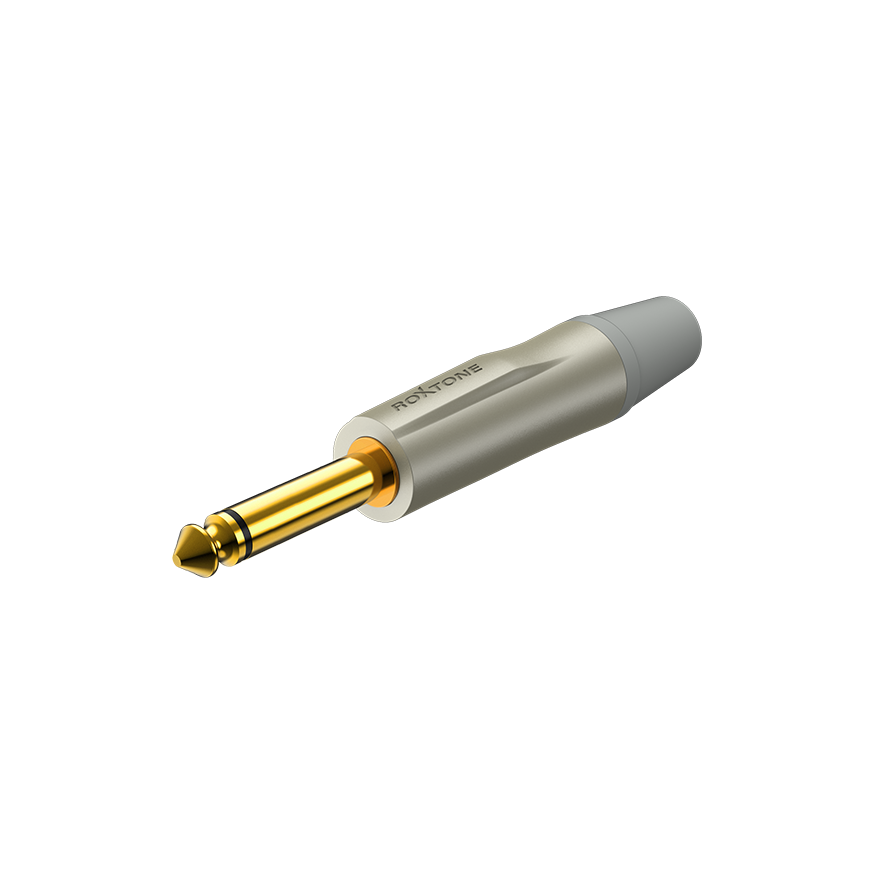

6.3mm Mono Plug, Satin Nickel Housing / Rifle Color Housing

PJ2X

Features

  • The best partner of Pureplug
  • Pure brass contact and more thick sleeve tube 0.5mm supply the more pure sound
  • Reliable chuck type cable strain-relief clamp fix the cable more tight and up to 7.5mm cable
  • Classic and simple design with patents protection

Technical Data

Housing Zinc alloy diecast
Insulation PBT 15%GF
Contacts Brass
Contacts plating Gold
Bushing PA 30%GF & TPE

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
PJ2X-SG 400 0.050 6.3mm mono plug, Satin nickel housing /
Gold plated contacts
PJ2X-GG 400 0.050 6.3mm mono plug, Rifle color housing /
Gold plated contacts
