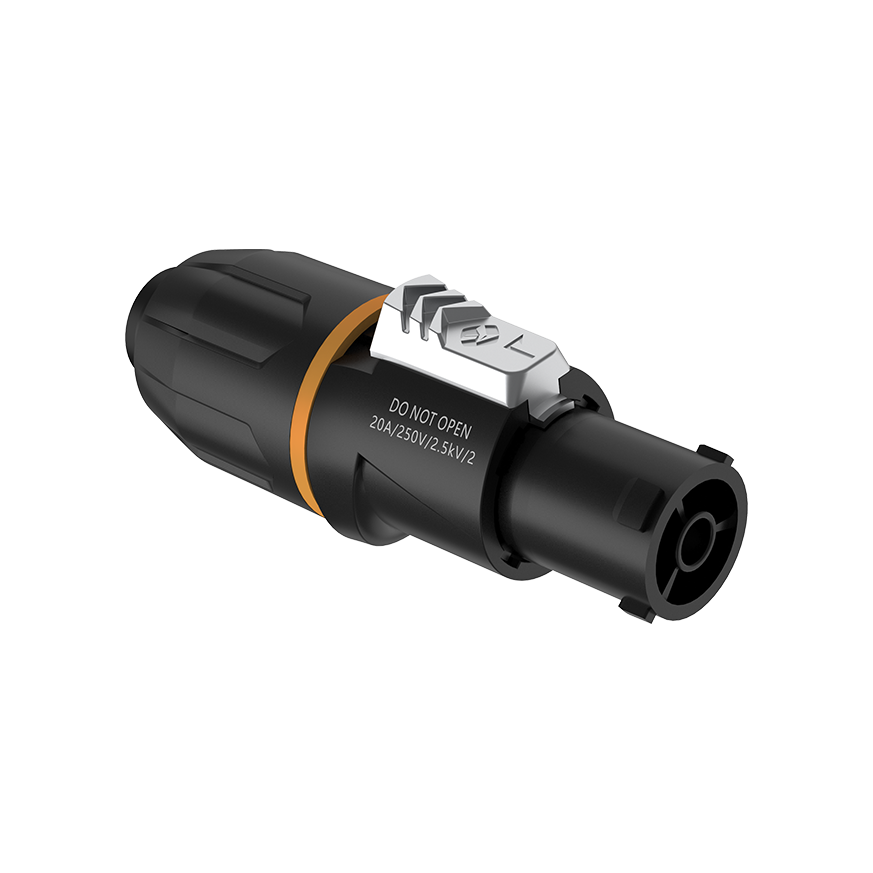

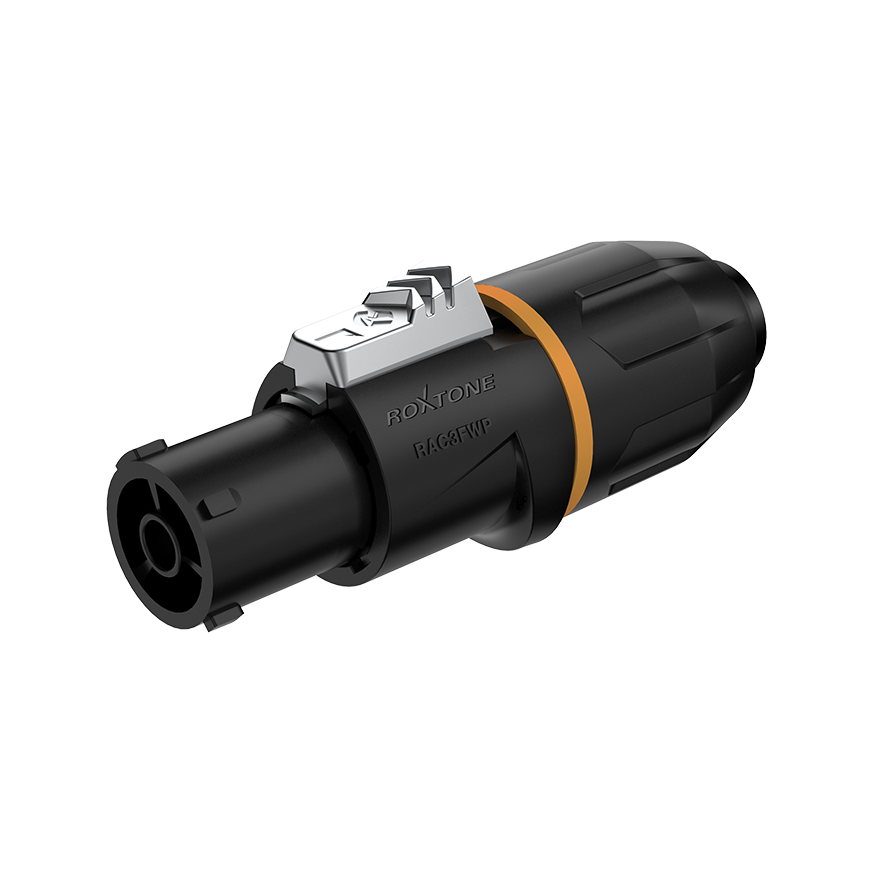

RAC3FWP

XROSSLINK Series Power Connector - Waterproof IP65

RAC3FWP

Product Type: Power Connectors

Features

  • Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen, lighting and other equipments
  • Thicker silver plated brass and beryllium bronze contacts supply excellent contact and conduction properties
  • Dust and water resistant according to IP65 in mated condition
  • Fast and easy twist lock system
  • Flame retardant materials create safer use
  • Glass fiber composite material, extremely robust and reliable
  • ROXTONE brand engraved on the housing
  • Patent-protected

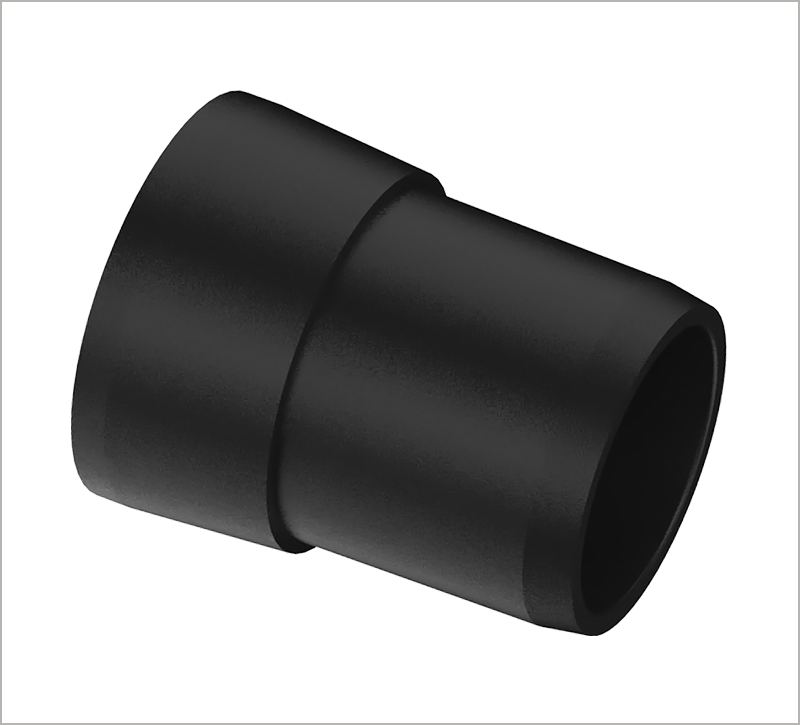

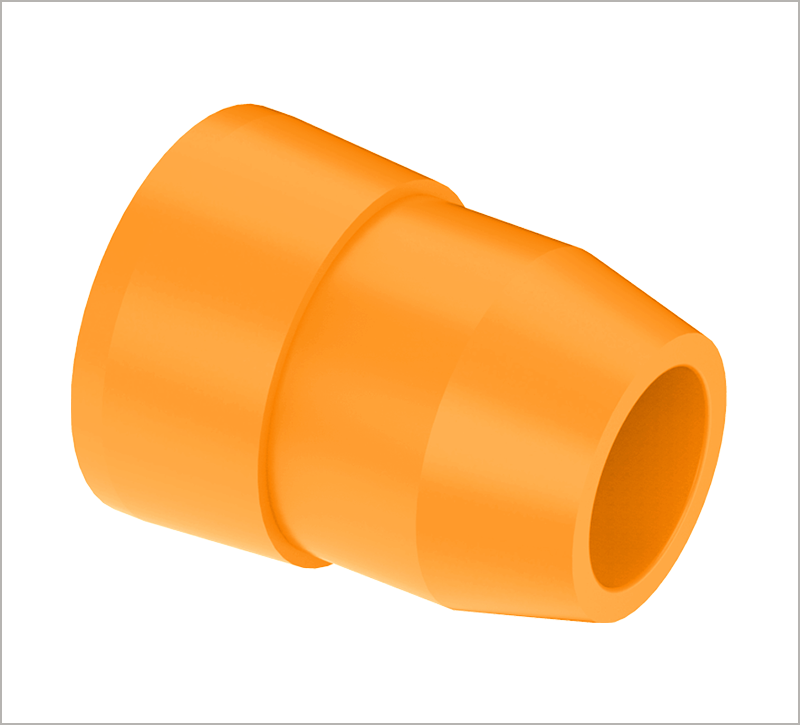

Included 2pcs sealing rings

  • Used for cable diameter 7.0mm~9.0mm
  • Used for cable diameter 9.0mm~12.0mm

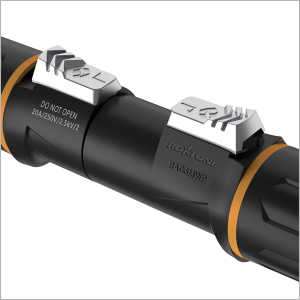

Cable extension

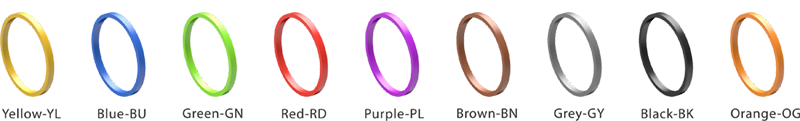

Available Color Rings

Technical Data

Housing PA66 30%GF
Insert PA66 30%GF
Latch Zinc Alloy diecast
Contacts Beryllium Bronze
Contacts plating Silver
Strain-relief clamp POM
Sealing bushing silicone
Sealing ring Silicone
Color ring PA6
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Cable O.D. range 7-12 mm
Protection class(mated) IP65
Fammability UL V-0

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)
RAC3FWP 320 0.066

Download

APPLICATION-ASSEMBLY-INSTRUCTION_XROSSLINK

pdf - 3090KB
