RAE8FD-C6A

CAT6a Feed Through Socket

RAE8FD-C6A

Product Type: RJ45 Connectors

Features

  • D-size feed through pedestal
  • ROXTONE brand engraved on the housing
  • Patent-protected

Technical Data

Housing Zinc alloy diecast
Insert PA6 30%GF
Power Supply 5V / 1.5A
Insulation Resistance >500MΩ
Dielectric Strength 1KV dc
Contact-Plating Gold 30μ

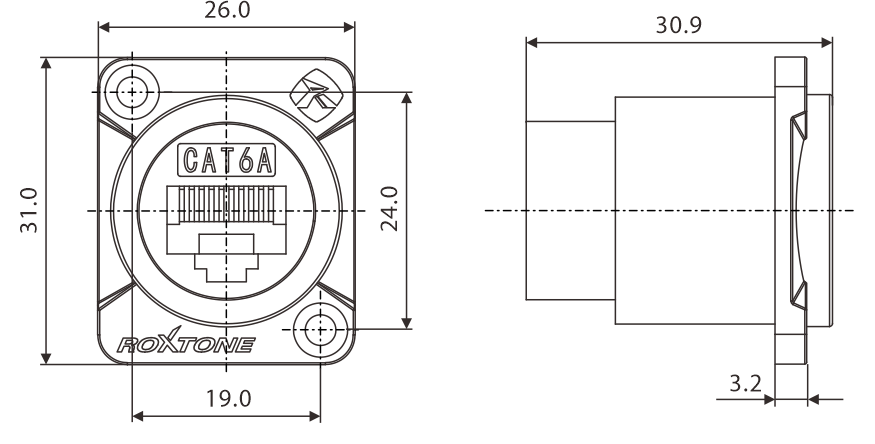

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RAE8FD-C6A 300 0.050 Feed through chassis RJ45 (CAT6A)
adapter, Nickel plated housing
RAE8FD-C6A-B 300 0.050 Feed through chassis RJ45 (CAT6A)
adapter Black housing
