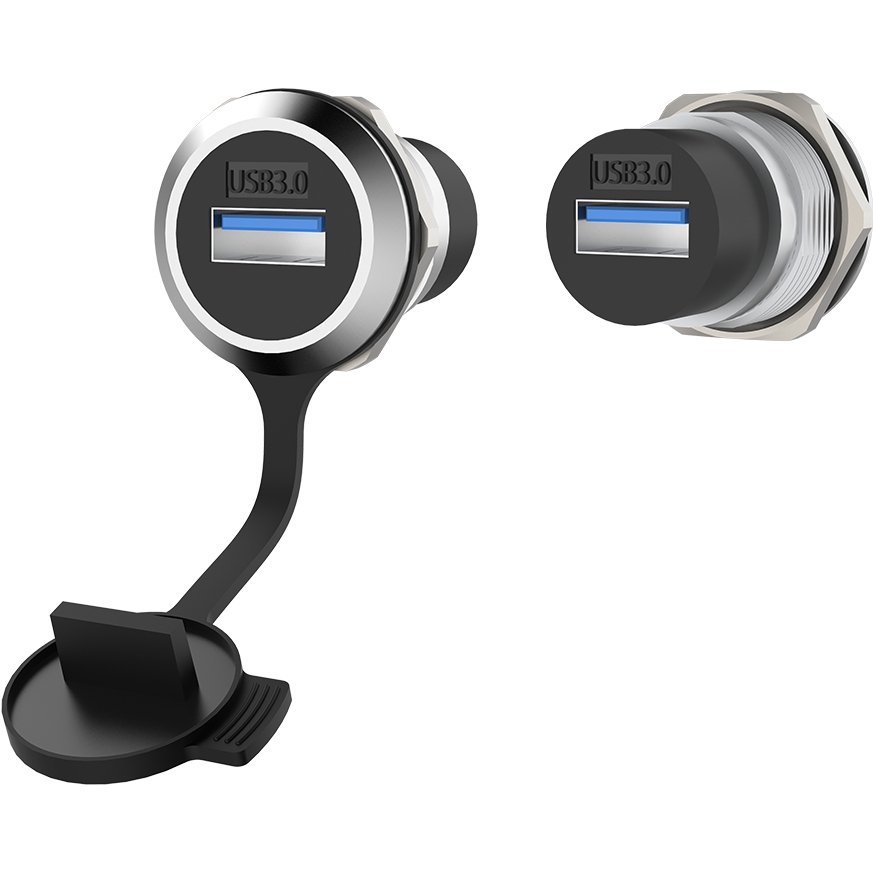

RAU3D24

USB3.0 Female Feed Through Socket

RAU3D24

Product Type: Data Connectors

Features

  • Feed through USB3.0 (A-A) socket
  • The rear nut is installed without screws
  • Round type, plug and play
  • Suitable for industrial, medical, automation equipment and so on

Technical Data

Housing Zinc alloy diecast
Insert Nylon
Contacts Bronze
Contact plating Gold

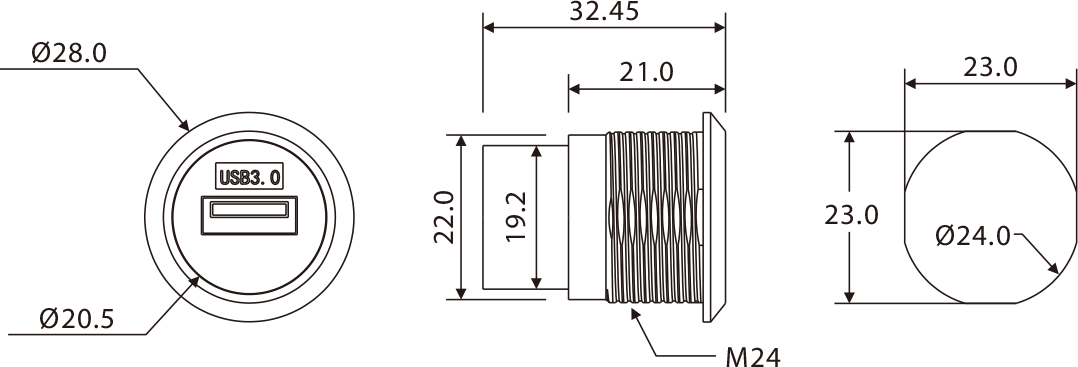

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RAU3D24-C 400 0.050 Feed through chassis USB3.0 (A-A)
adapter, Nickel plated housing
RAU3D24-B 400 0.050 Feed through chassis USB3.0 (A-A)

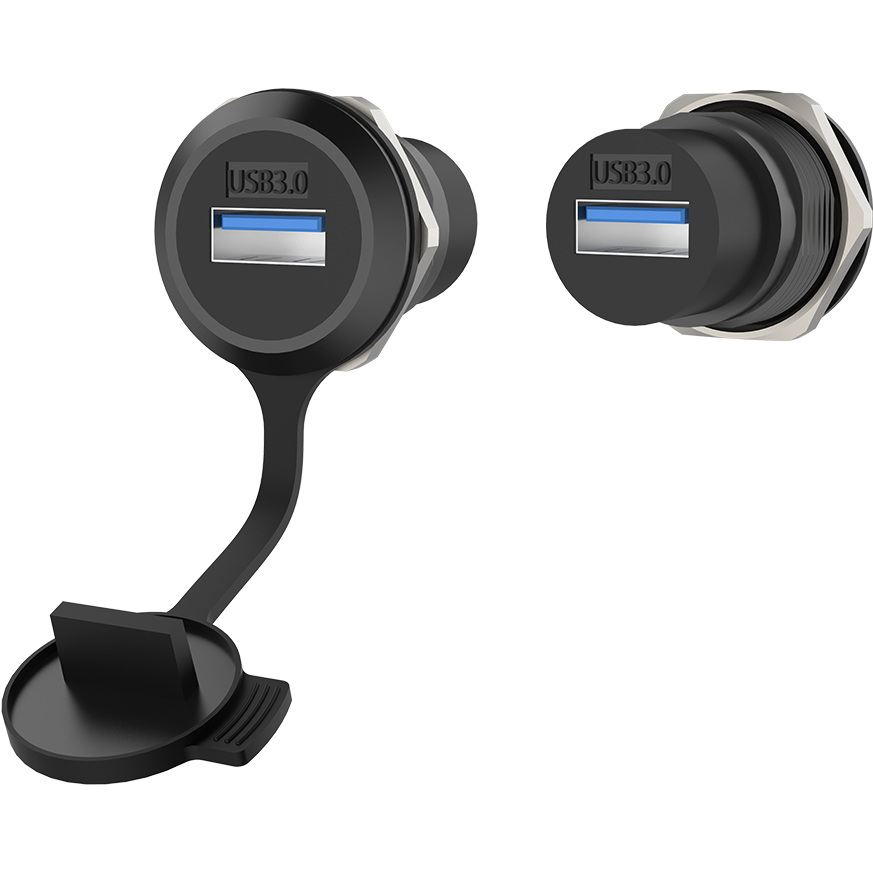

adapter, Black housing
