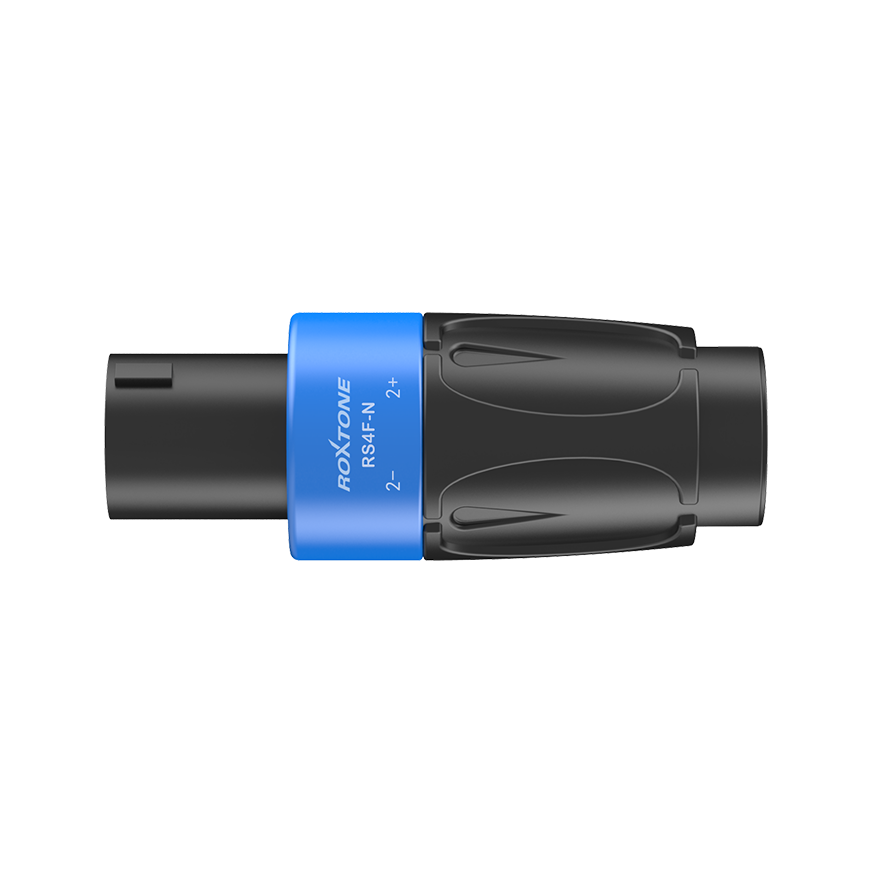

RS4F-N

4 Pole Speaker Female Connector

RS4F-N

Product Type: Speaker Connectors

Features

  • Only 3 parts, easy for assembly
  • Improved design for latch lock
  • Improved brass contacts ensure the conductivity, have higher current rating for the operation of high power speakers and amplifiers
  • 1 piece strain-relief for easy tightening the cable diameter form 8 to 12mm, with an additional accessory RSA from 5-7mm
  • Patent-protected

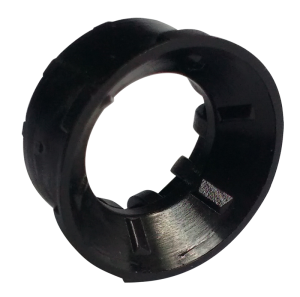

RSA

Technical Data

Housing PA6 30%GF
Insert PA6 30%GF
Latch Zinc Alloy diecast
Contacts Brass
Contacts plating Nickel
Strain relief POM
Bushing PA6 30%GF

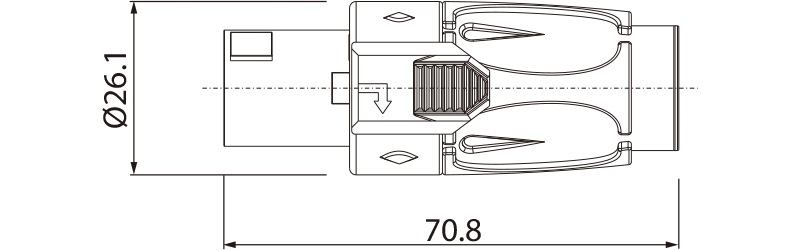

Engineering Drawing



Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description

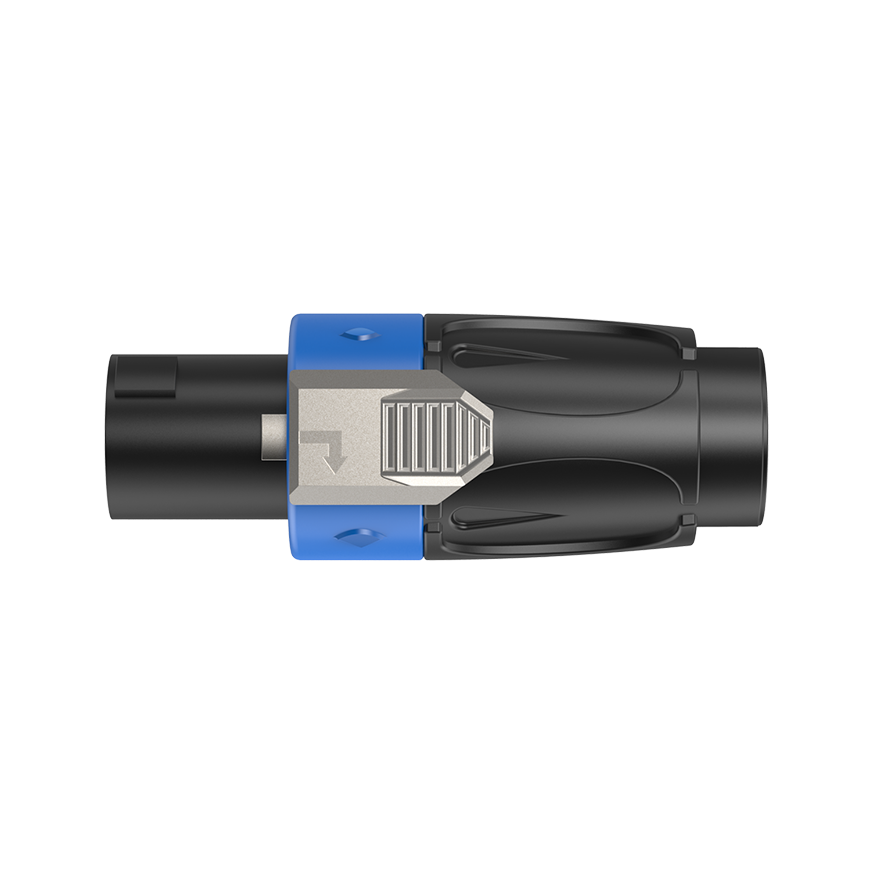

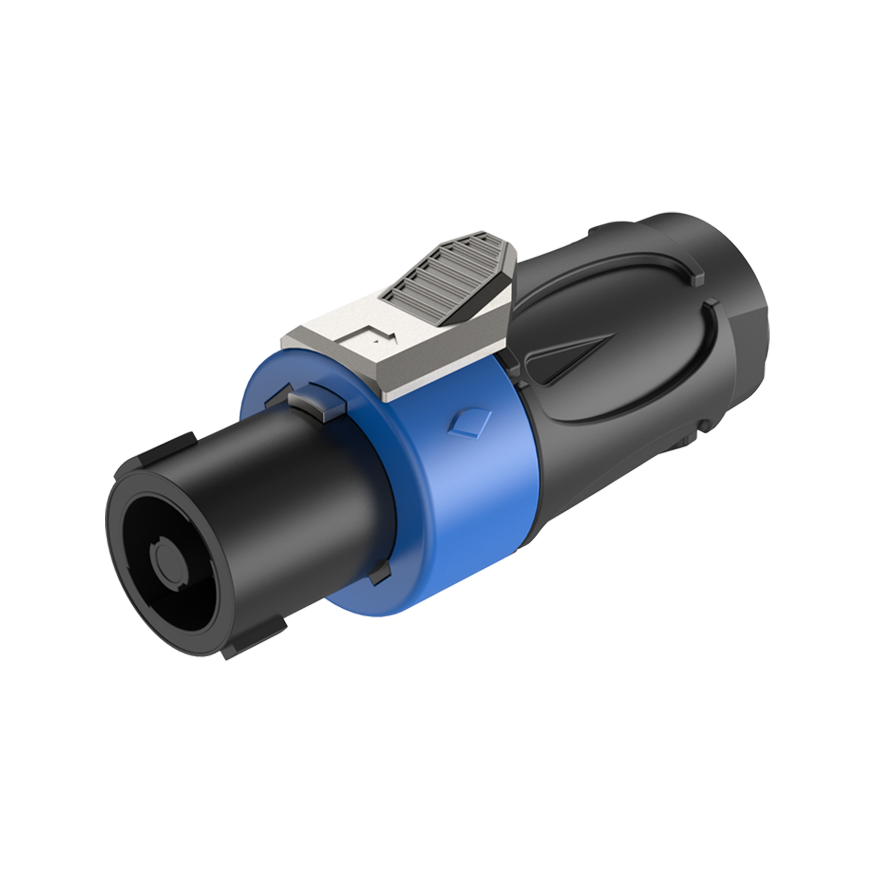

RS4F-N-BU 400 0.066 4 pole Speaker female connector,
Nickel plated contacts,Blue color ring

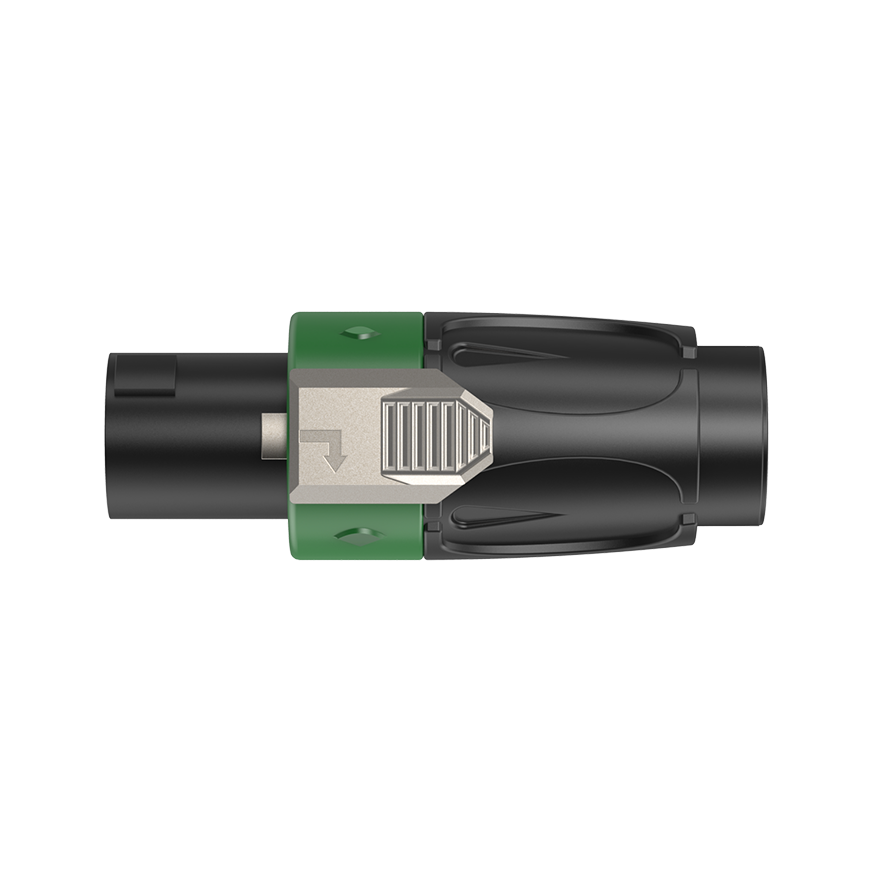

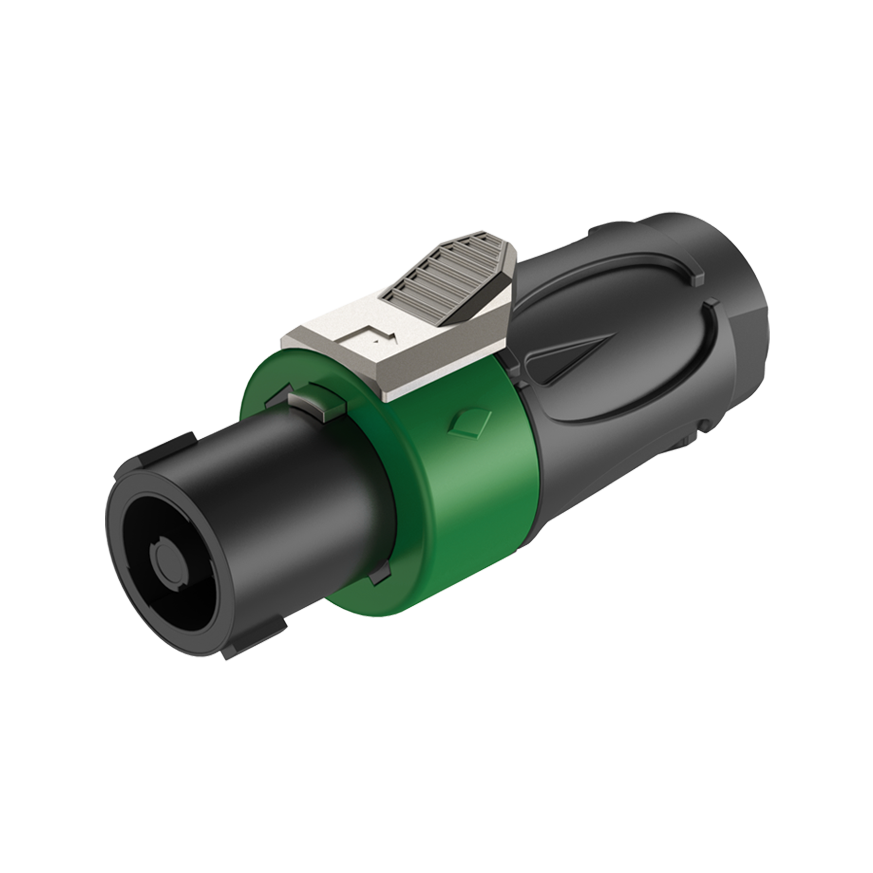

RS4F-N-GN 400 0.066 4 pole Speaker female connector,
Nickel plated contacts,Green color ring

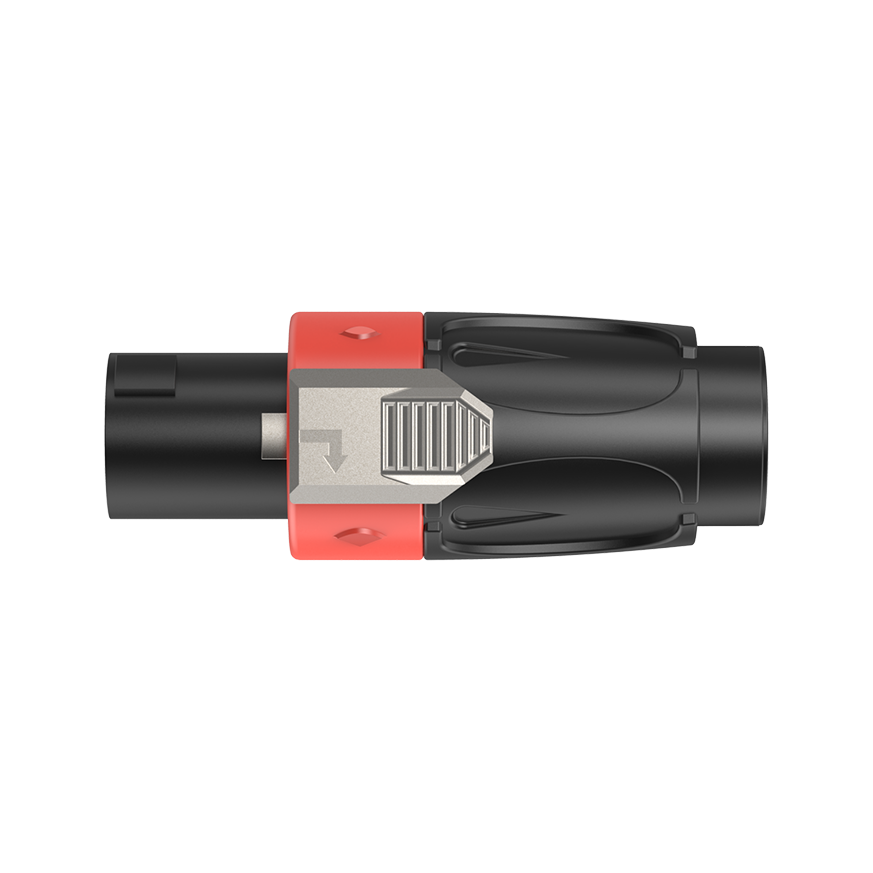

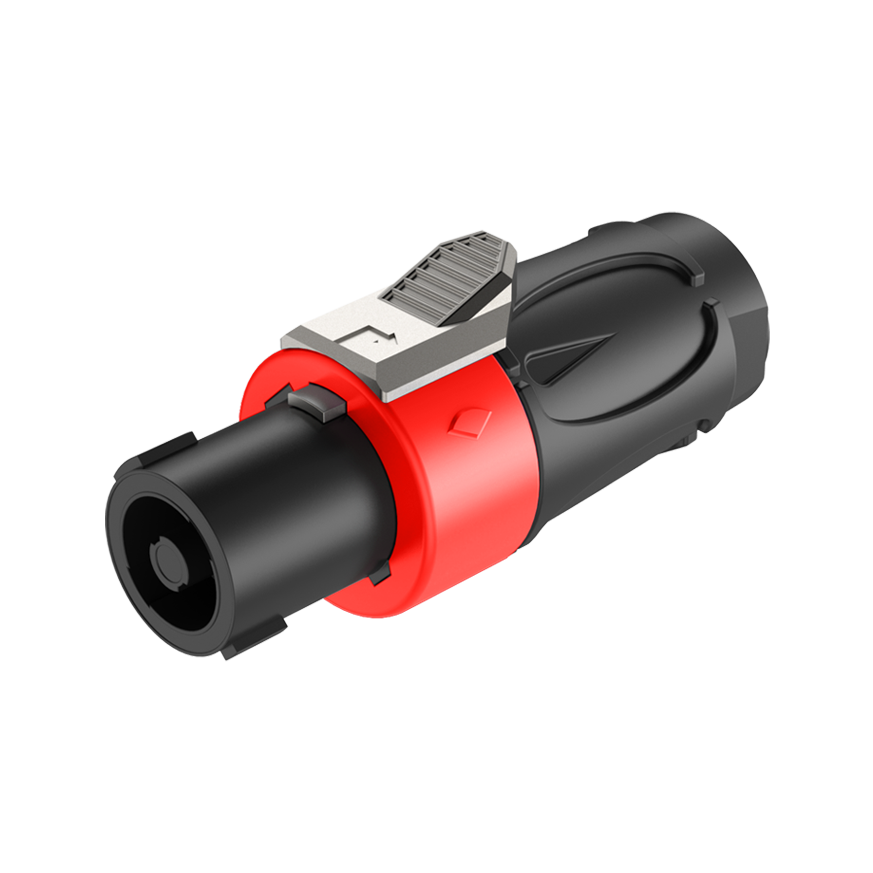

RS4F-N-RD 400 0.066 4 pole Speaker female connector,
Nickel plated contacts,Red color ring
