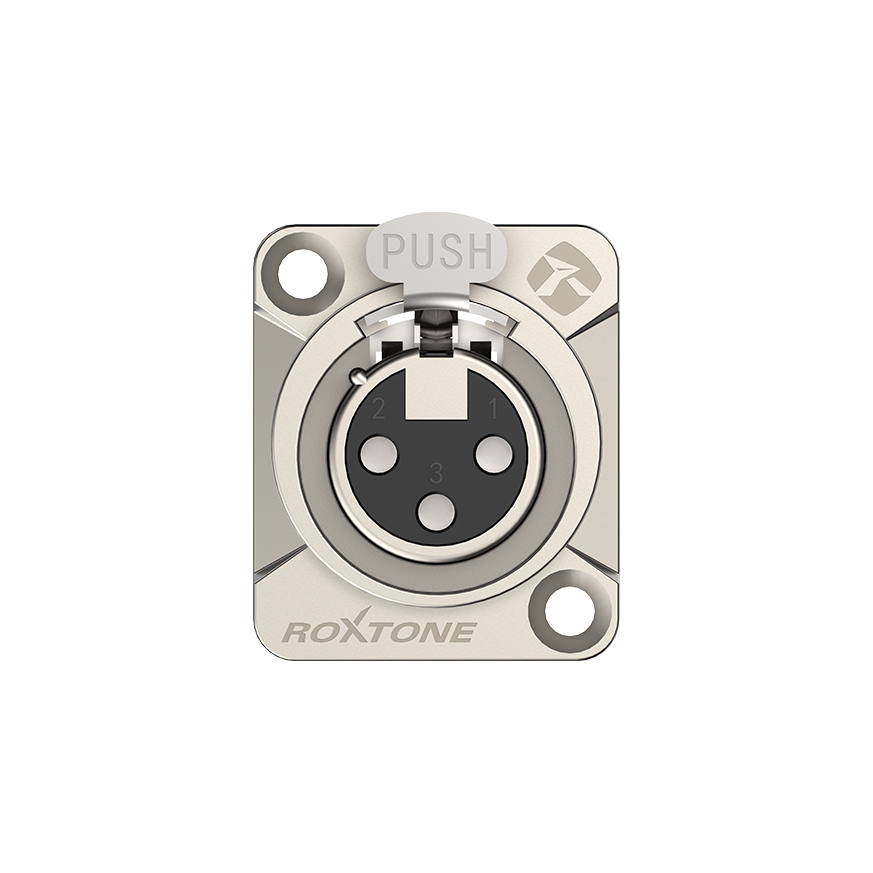

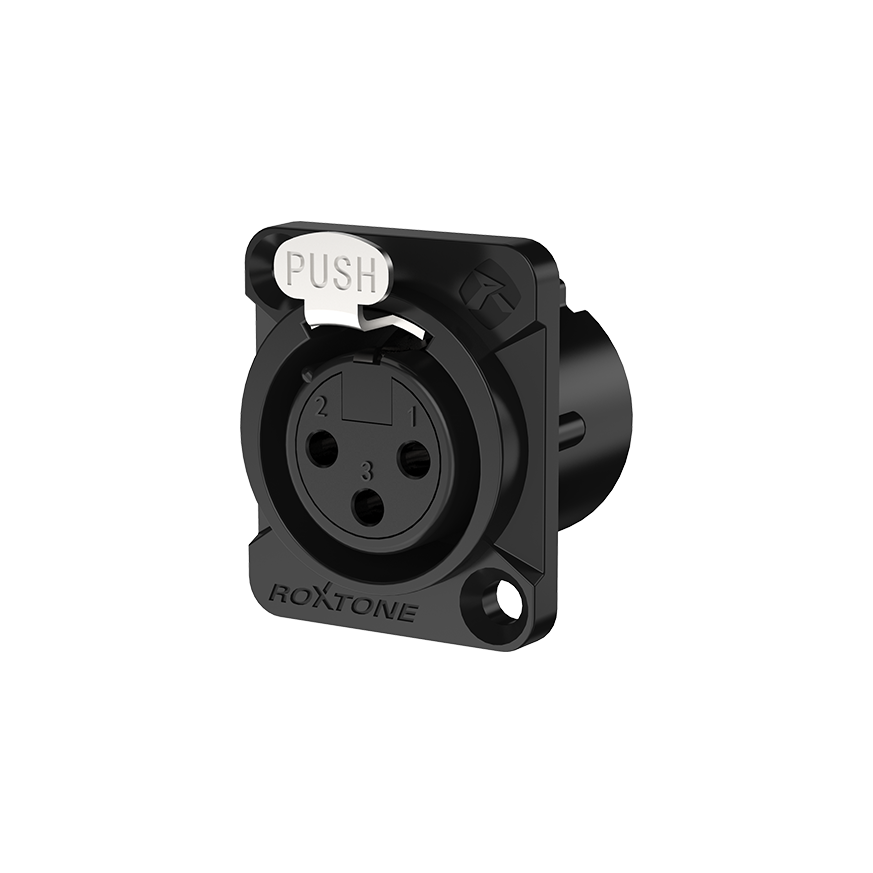

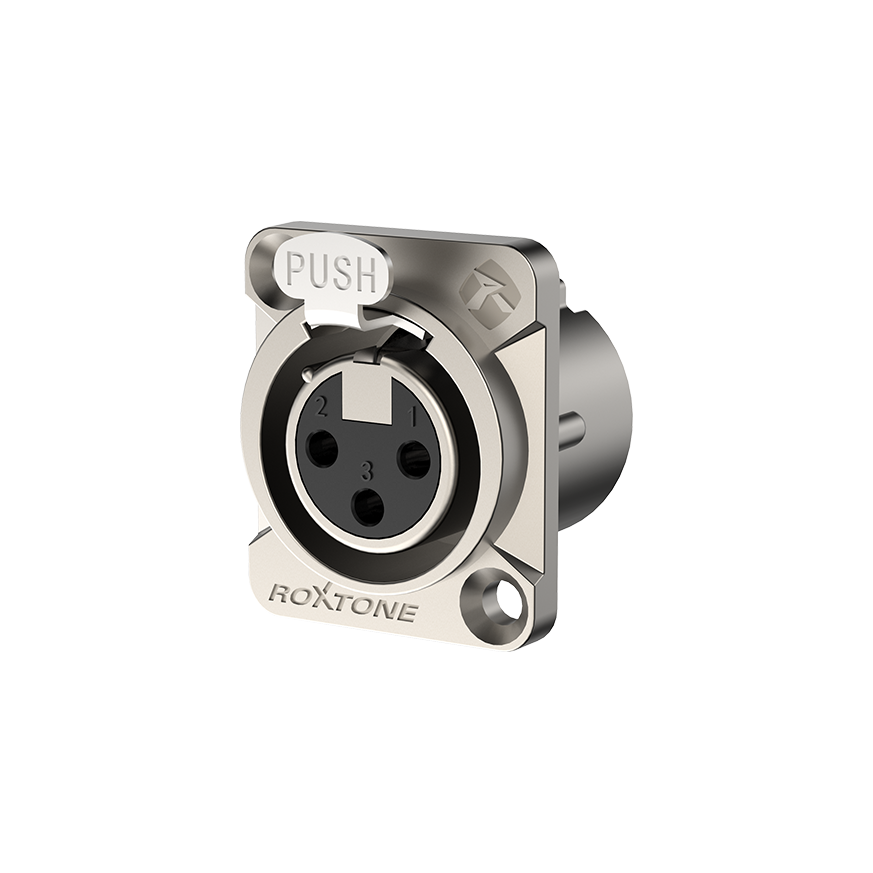

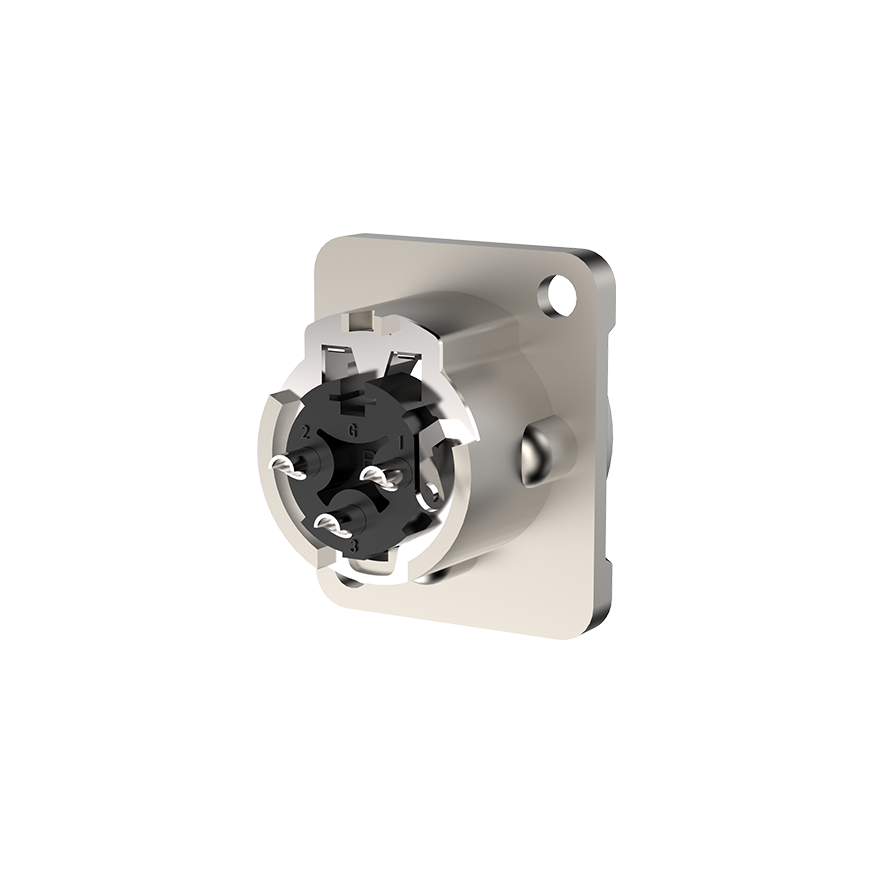

Heavy-duty 3 Pole XLR Female Socket, Nickel Plated Housing / Black Housing

RX3FDHD

Features

  • Heavy-duty XLR sockets
  • “D” shape solid full metal construction for extreme durability
  • Cage-type female contacts enhance conductivity and stability
  • Front and rear mountable
  • Roxtone brand engraved on the housing
  • Patent-protected

Technical Data

Housing Zinc alloy diecast
Insert PA6 30%GF
Contacts Bronze
Contacts plating Tin or Gold

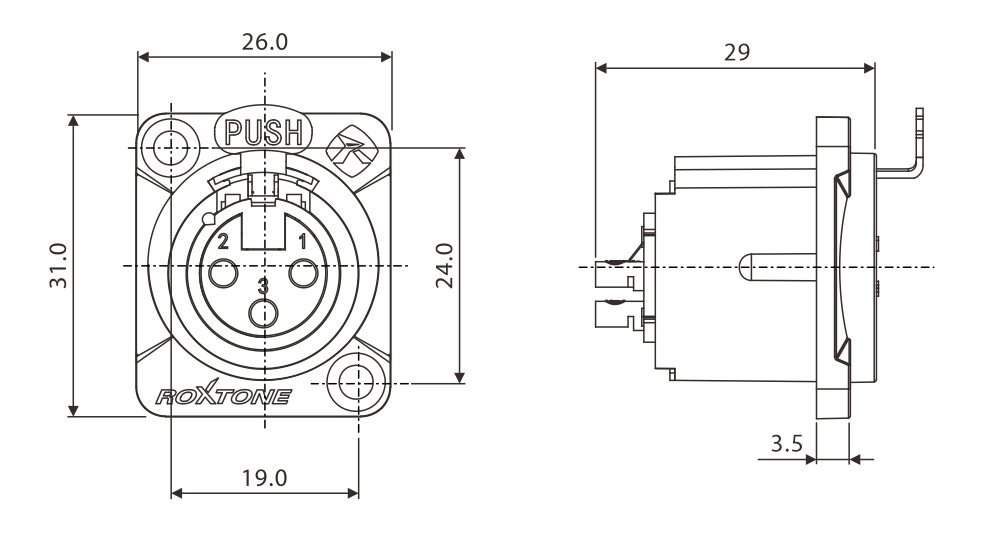

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)
Carton Volume
(m³)
Description
RX3FDHD-BG 300 0.050 3 pole XLR female socket, Black electrophoretic
paint shell, Gold plated contacts
RX3FDHD-NT 300 0.050 3 pole XLR female socket, Nickel plated shell,
Tin plated contacts

related products

Floor Stage Box, Assembled With TCC Series Multicore Audio Cables

Multicore System,Audio Stage Box,Assembled With TCC Series Multicore Audio Cables

3 Pole XLR Male, Nickel Plated Housing / Black Housing

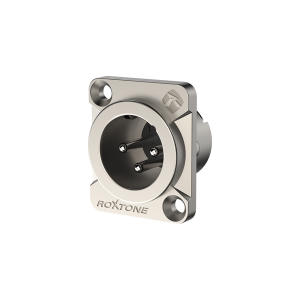

Heavy-duty 3 Pole XLR Male Socket, Nickel Plated Housing / Black Housing
