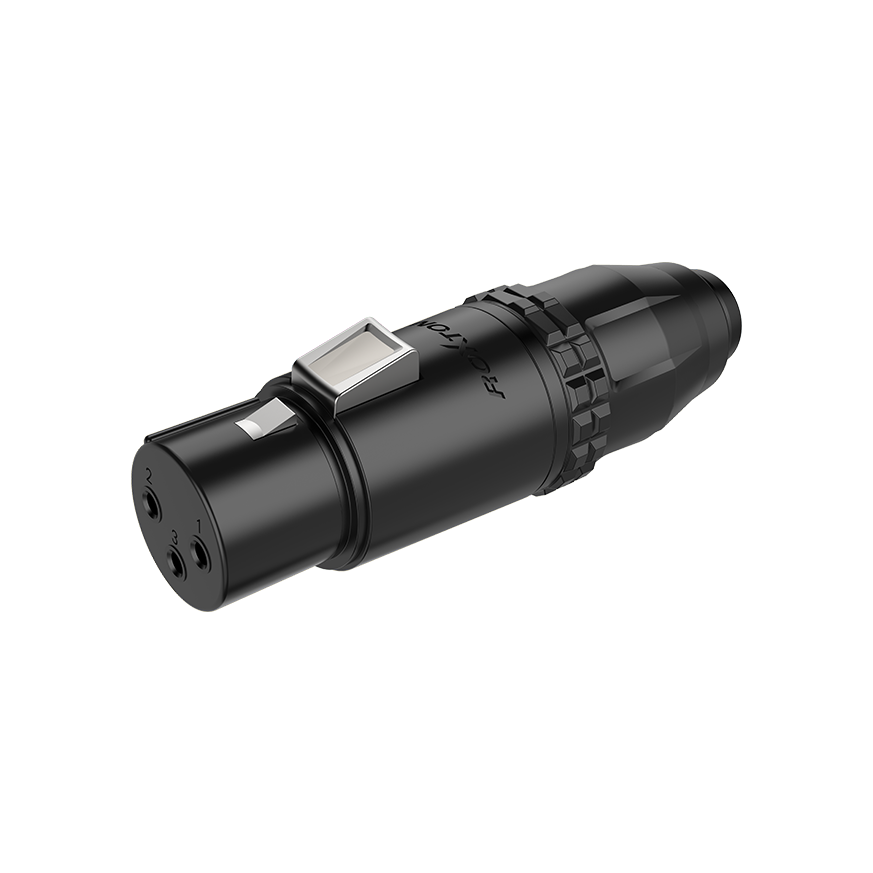

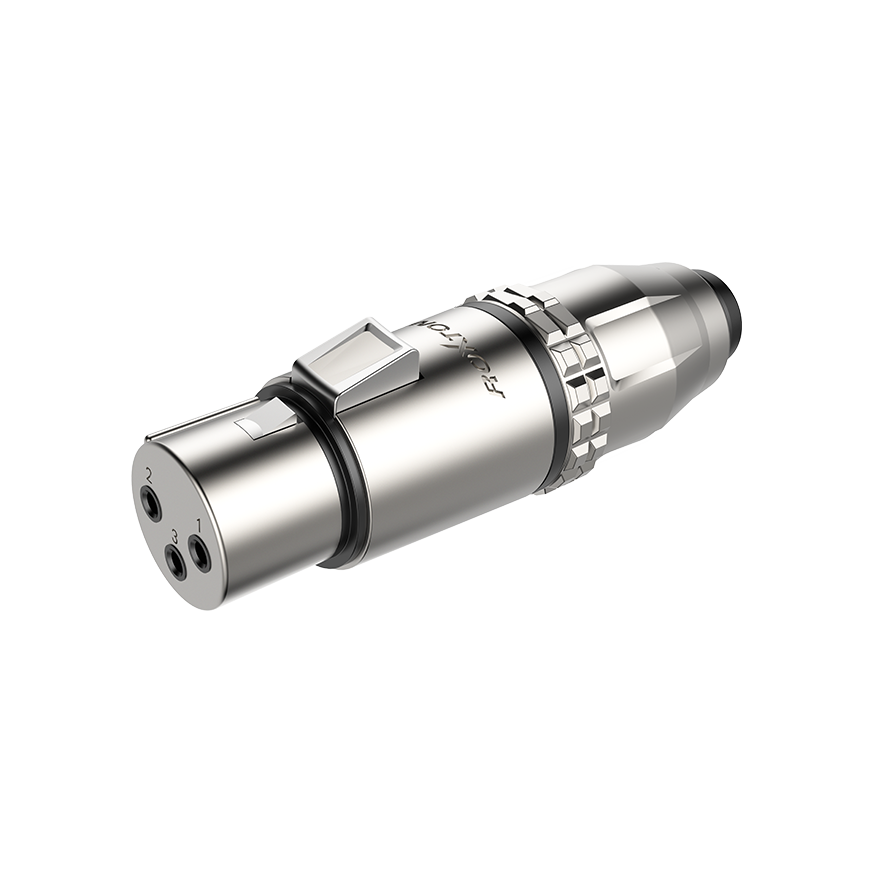

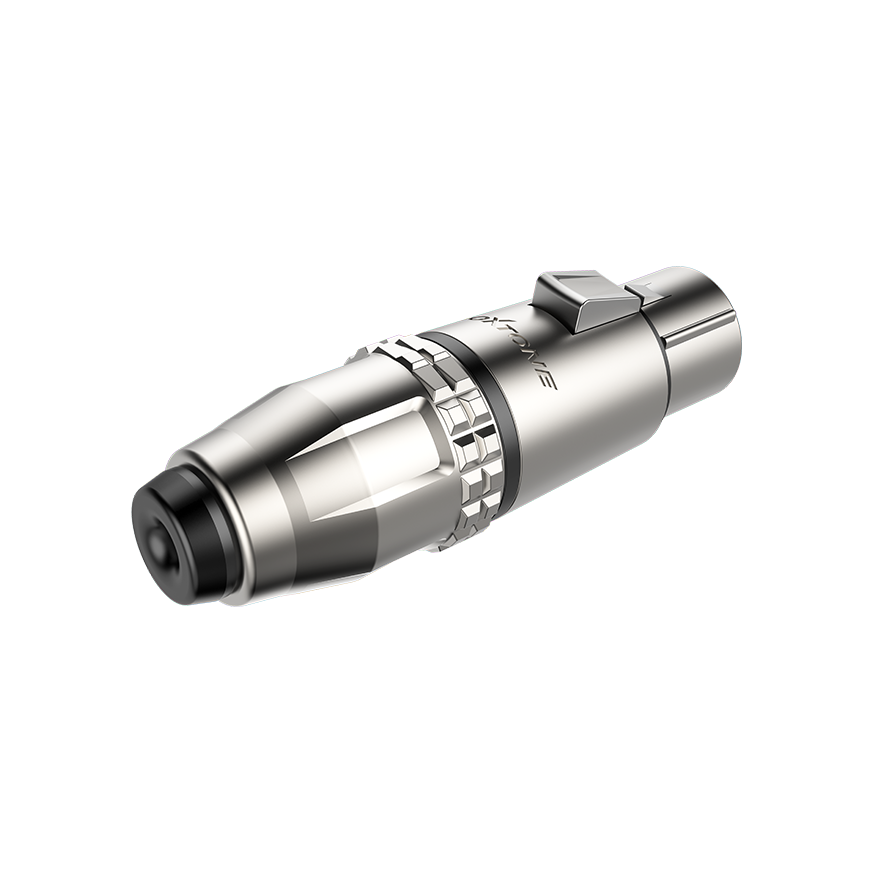

RX3FWP

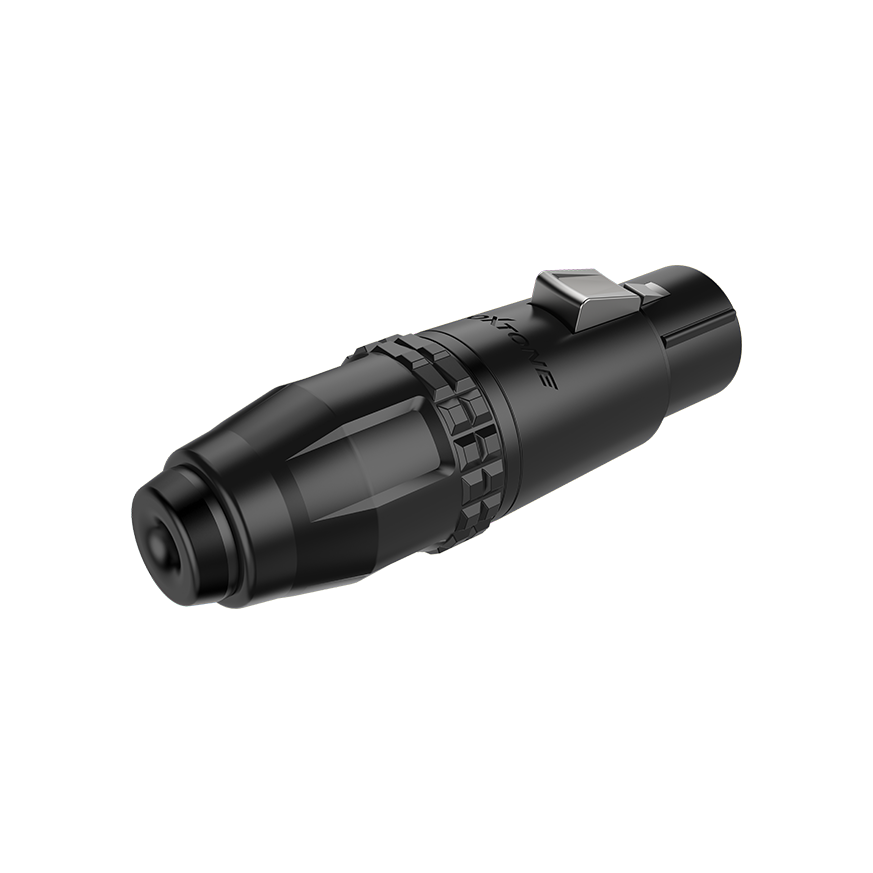

3 Pole Heavy-Duty Waterproof XLR Female - IP66

RX3FWP

Features

  • IP66 Waterproof heavy-duty XLR connectors
  • Can independently play the function of lP66 waterproof & dustproof
  • Full metal solid structure housing for long life using & ensure excellent shielding effect
  • Unique creative waterproof system supply the reliable and durable waterproof effect
  • Ergonomic oversize push button for comfortable plug & unplug

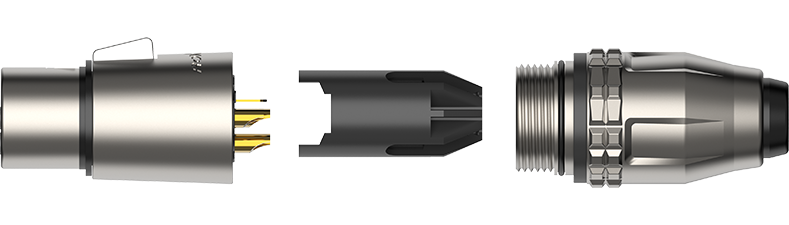

  • Unique three-part design makes welding and assembling easier and faster
  • Unique gear design makes assembling and disassembling easier
  • Passed the testing of beyond 5000 mating cycles, due to made from high-quality raw materials
  • Passed SGS IP66 testing
  • Invention patent-protected

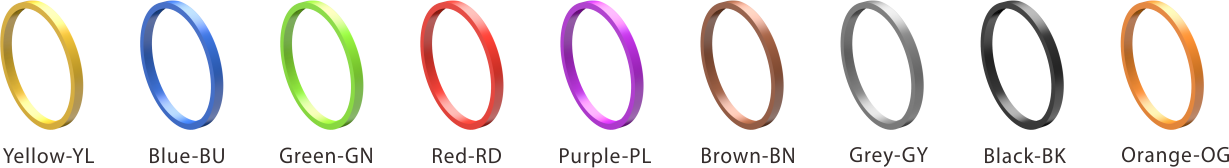

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PA6 30%GF
Contacts Bronze
Contacts plating Gold
Strain-relief clamp POM
Bushing Zinc alloy diecast
Coding ring PA

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description

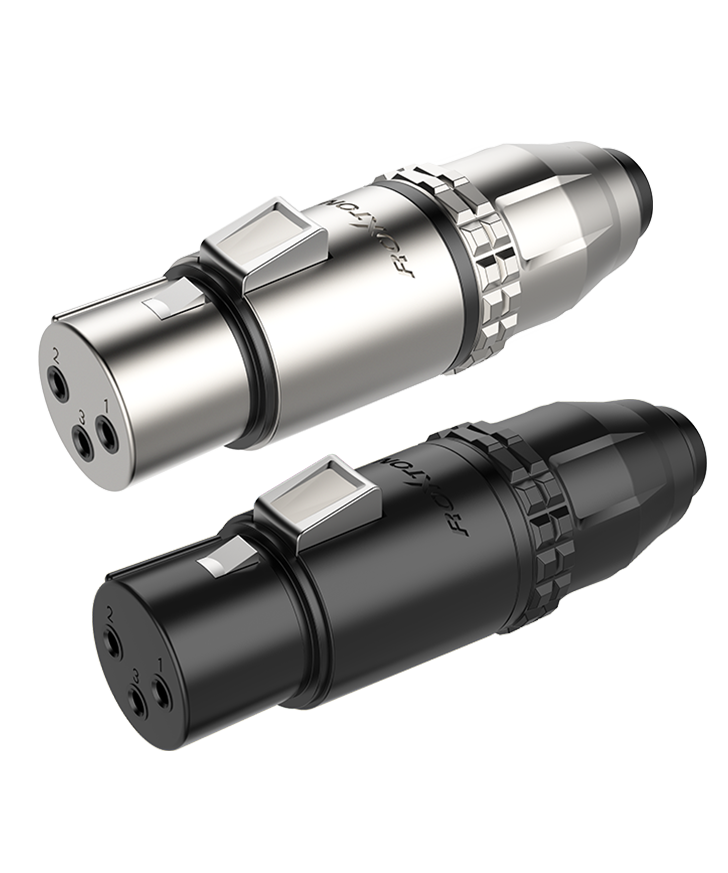

RX3MWP-BG 400 0.050 3 pole XLR female, Black housing, Gold plated contacts
RX3MWP-NG 400 0.050 3 pole XLR female, Nickel plated housing, Gold plated contacts

Download

3 pole Heavy-Duty Waterproof XLR Test Report

pdf - 376KB

related products

RX3F

RX3F

3 Pole XLR Female, Nickel Plated Housing / Black Housing

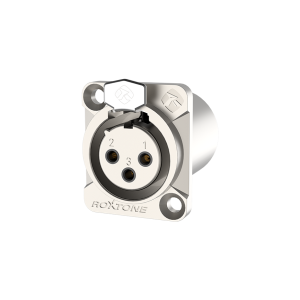

RX3FDWP
