RX5M

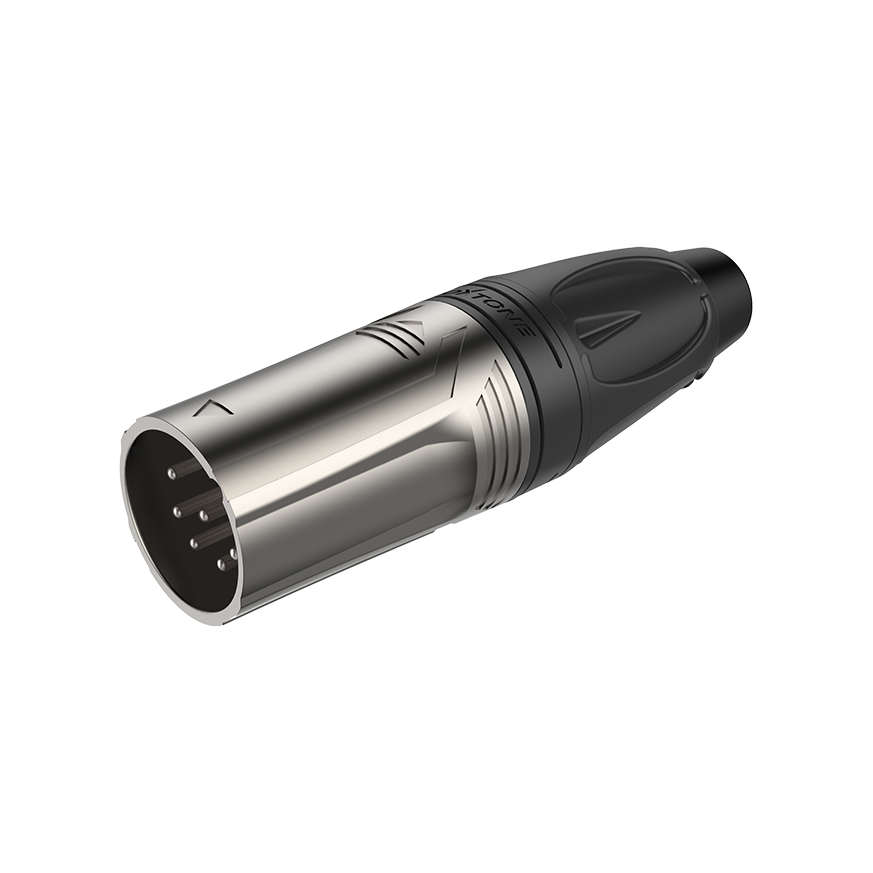

5 Pole XLR Male, Nickel Plated Housing / Black Housing

RX5M

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Without locking “window” makes the housing more strength
  • Special contacts pin with gear and fluting design to avoid moving
  • ROXTONE brand engraved on the housing
  • Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
  • Patent-protected

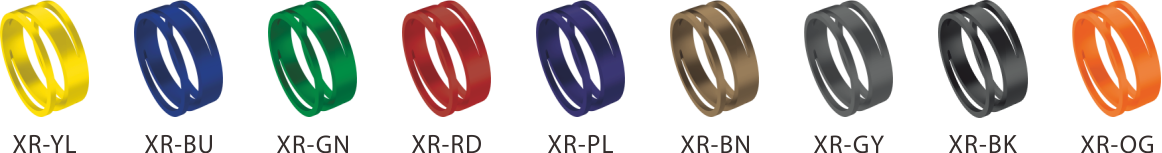

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PBT
Contacts Brass
Contacts plating Tin or Gold
Strain-relief clamp POM
Bushing PA 30% GF
Coding ring PA6 30% GF

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
RX5M-NT 400.00 0.050 5 pole XLR male, Nickel plated
housing, Tin plated contacts
RX5M-BG 400.00 0.050 5 pole XLR male, Black housing,
Gold plated contacts
