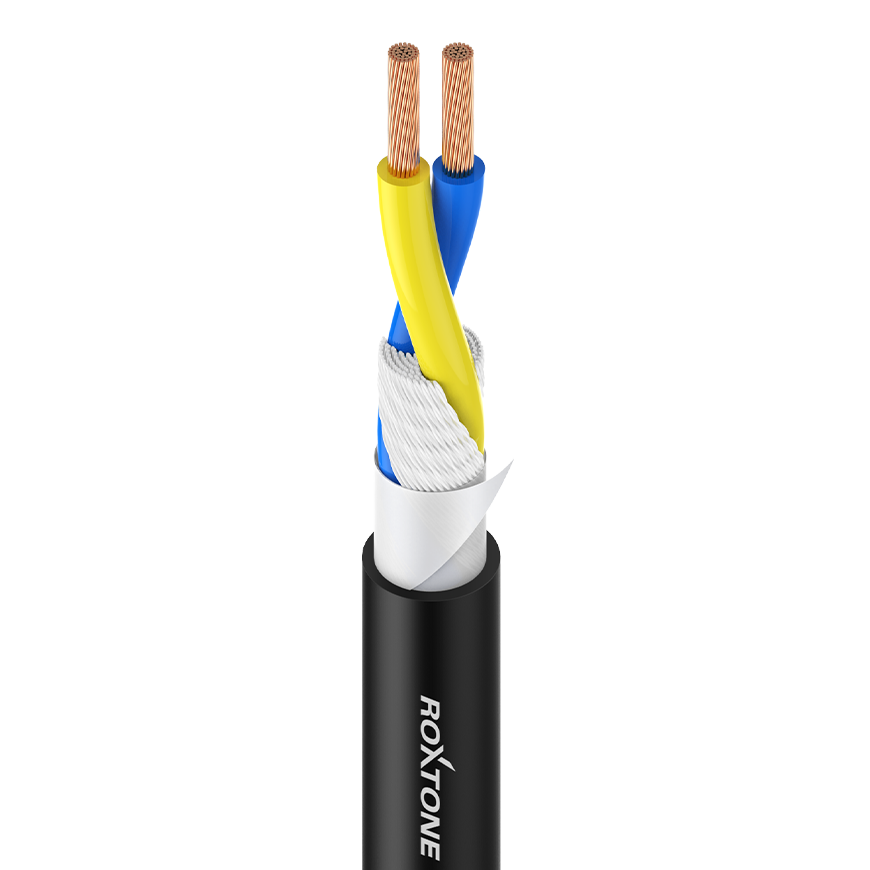

Speaker Cable

SC020C

14AWG – 2 x 2.0 mm²

Color

Applications: All types of sound systems, For permanent installation, Wiring of HiFi-systems, Mobile outdoor areas

Product Type: Bulk Speaker Cables

Features

Soft PVC jacket and inner conductors twisted grant a perfect winding
Small diameter
Very affordable

Technical Data

Jacket, diameter	PVC 8.5 mm
AWG	14
No. of inner conductors	2 x 2.0 mm²
Copper strand per conductor	64 x 0.20mm
Cond. Insulation, diameter	PVC 2.9 mm
Temperature range	Min. -20 °C
Temperature range	Max. +70 °C
Packaging	100/300 m roll

Packaging Data

Order Code	Length	Carton QTY (PCS)	Carton Volume (m³)
SC020CL1000BK	100 m/Roll	2	0.030
SC020CL3000BK	300 m/Roll

Electrical Data

Capac. Cond./cond. Per 1 m	134 pF
Cond. Resistance per 1 m	5.5 mΩ
