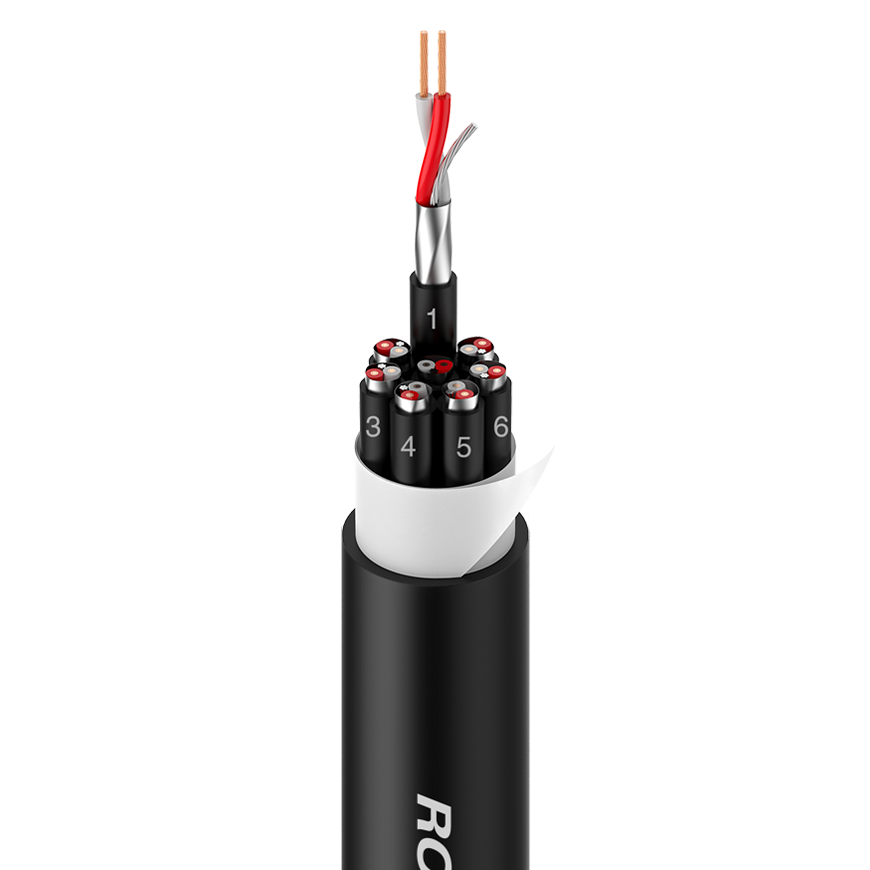

TCG4

Multicore Audio Cable

TCG4

26AWG – 4 x 2 x 0.22mm²
Color
Applications: Reasonable cable for the construction of stage box systems and multi-pair systems, Dependable cable for permanent installation in installation technologies

Features

  • Each pair is individually insulated with black and number-printed PVC jacket
  • Excellent to work with due to the use of a special AL/PT-foil
  • Flexible due to the special wire construction
  • Good shielding due to the overall and individual wire pair shielding

Technical Data

PVC jacket, diameter 10.5 mm
Cond. PVC jacket,diameter 3.2 mm
AWG 24
No. of inner conductors 4 x 2 x 0.22 mm²
Copper strand per conductor 28 x 0.10 mm
Conductor insulation PE 1.2 mm
Shielding AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor 100%
Temperature range Min. -20 °C
Temperature range Max. 70 °C

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
TCG4L1000BK 100 m/Roll 1 0.032

Electrical Data

Capac. cond./cond. per 1 m 70 pF
Capac. cond./shield. per 1 m 147 pF
Cond. resistance per 1 m 80 mΩ
Shield. resistance per 1 m 100 mΩ
