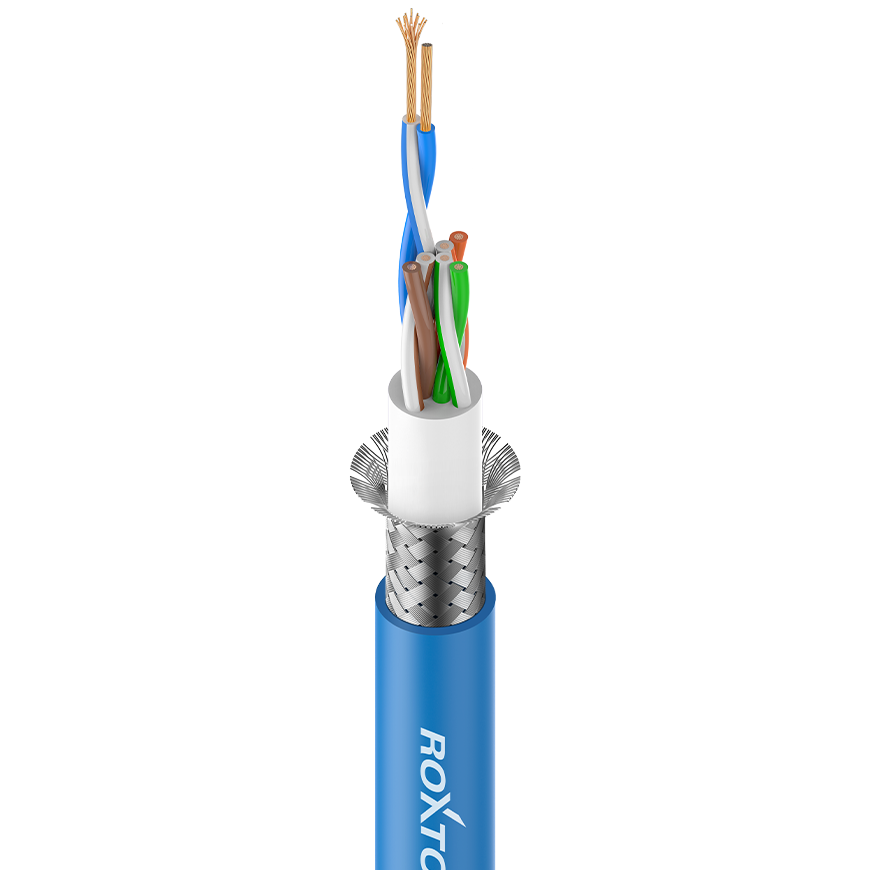

CAT5FB

Flexible CAT5e Data Cable S/UTP

CAT5FB

26AWG – 4 x 2 x 0.15 mm²
Color
Applications: Network cable for mobile applications and drum storage, Better to use on stage or outdoor events, Use for data system technology

Features

  • Highly flexible CAT5e data cable down to -40 °C
  • S/UTP ( braided shielding + unshielded twisted pairs )
  • Very robust TPE jacket
  • EtherSound up to 50 m
  • Halogen-free and Flame retardant

Technical Data

Jacket, diameter TPE 6.4 mm
AWG 26
No. of inner conductors 4 x 2 x 0.15 mm²
Copper strand per conductor 19 x 0.10 mm
Conductor insulation HDPE
Shielding Braided shielding with 128 x 0.12 mm
Shielding factor 90 %
Temperature range Min. -40 °C
Temperature range Max. +85 °C
Packaging 100/300 m roll

Packaging Data

Order Code Length Carton QTY
(PCS)		 Carton Volume
(m³)
CAT5FBL1000BK 100 m/Roll 4 0.037
CAT5FBL3000BK 300 m/Roll 1 0.032
CAT5FBL1000BU 100 m/Roll 4 0.037
CAT5FBL3000BU 300 m/Roll 1 0.032

Electrical Data

Capac. cond./cond. per 1 m 45 pF
Capac. cond./shield. per 1 m 70 pF
Cond. resistance per 1 m 122 mΩ
Shield. resistance per 1 m 37 mΩ

related products

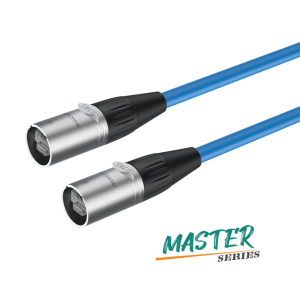

MC5EE
