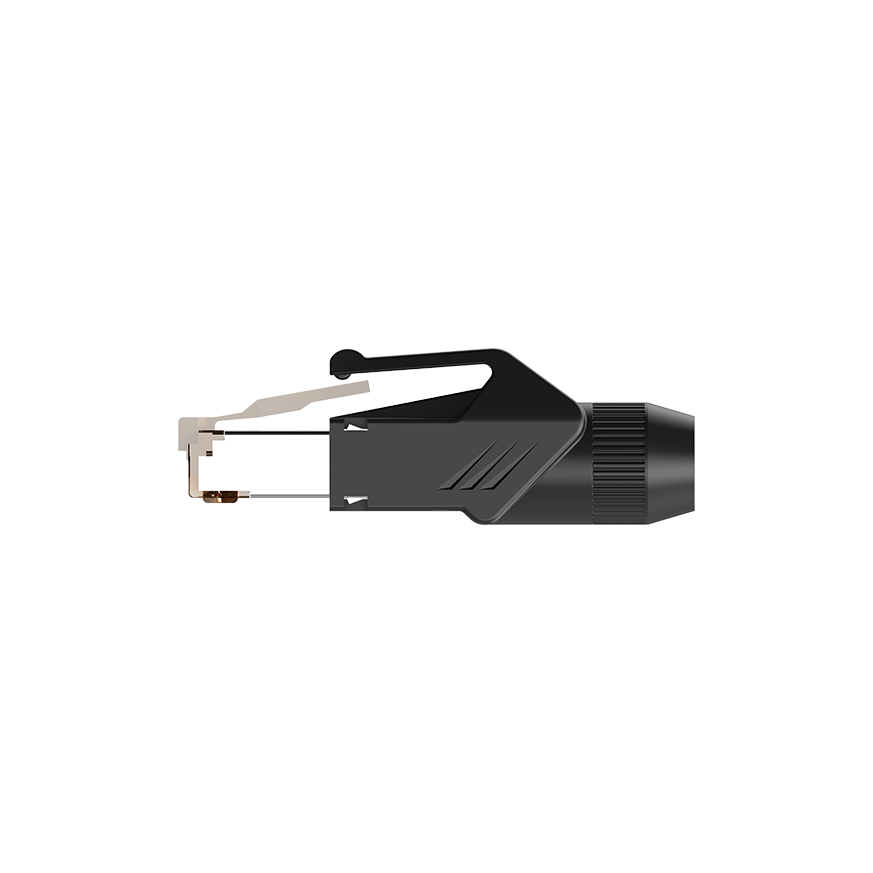

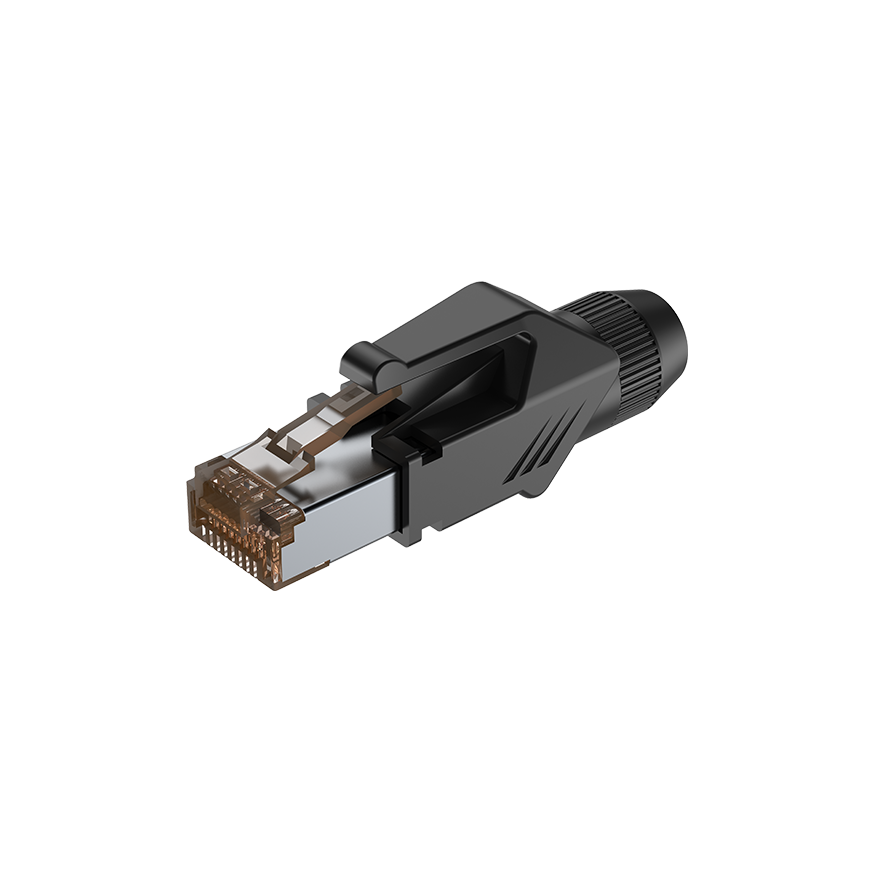

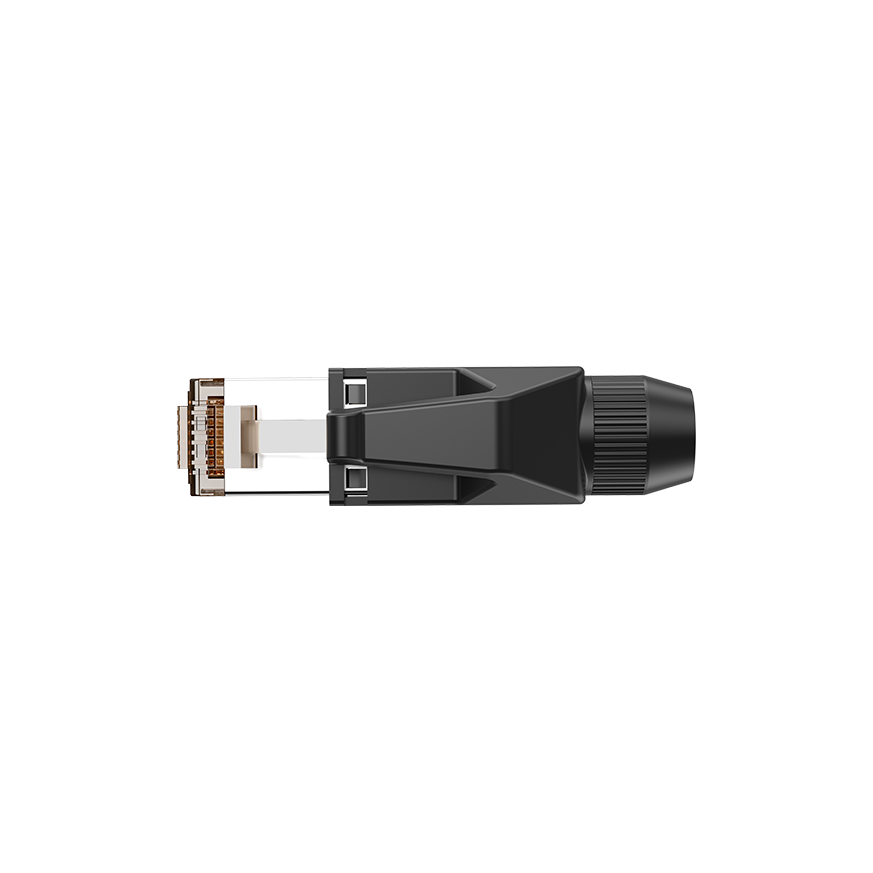

CAT5e RJ45 plug + Protective Housing

RJ45C5E-PH

Product Type: RJ45 Connectors

Features

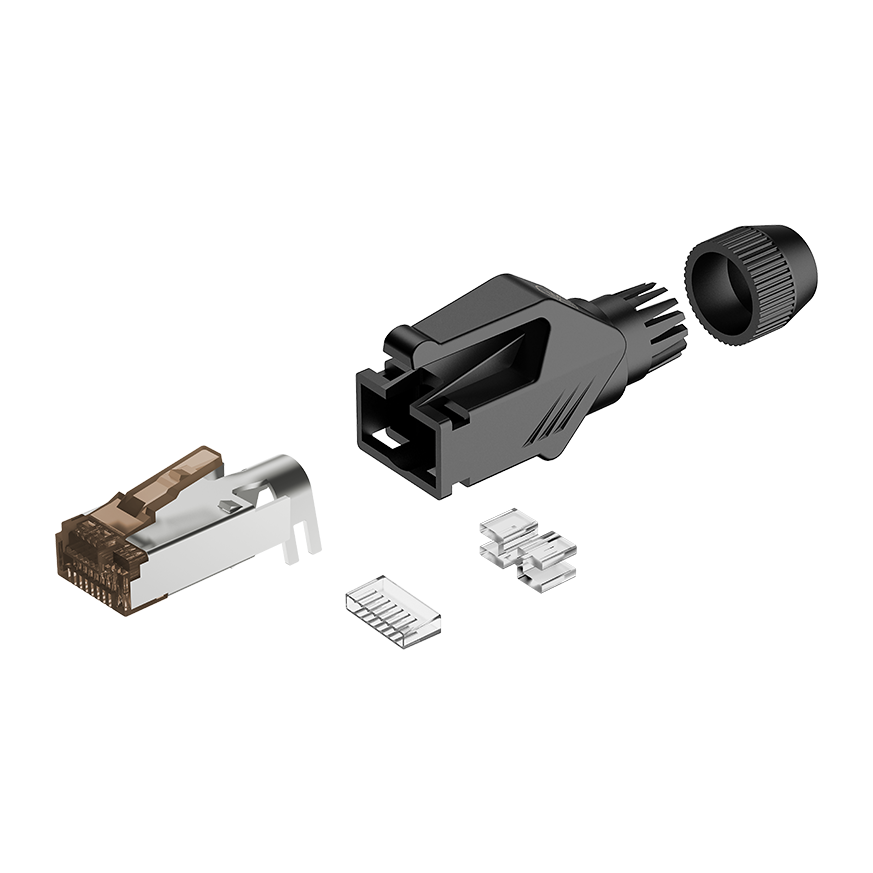

  • RJ45 plug (part A) CAT5e, 150MHz, max. AWG26 , metal cable clamp holder for drain wire
  • Wire core Load bar (part B) easy for assembly
  • Nylon protective housing (part C) with special designed cable clamping system, Suitable for max. cable diameter 7,0mm
  • Optional 10 colours bushing (part D)
  • Patent protected
  • Recommended cable: CAT5FB

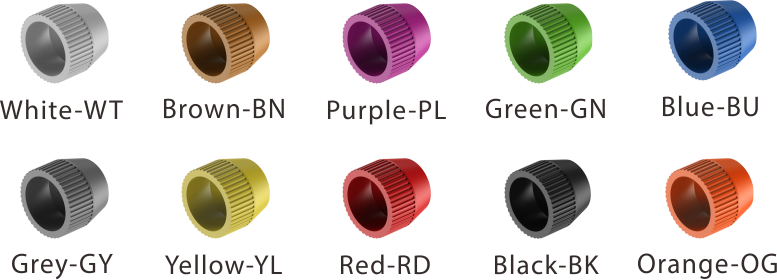

Available for 10 colours bushing

Technical Data

RJ45 Plug type CAT5e
Contacts Bronze
Contacts plating Gold
Protective Housing PA6

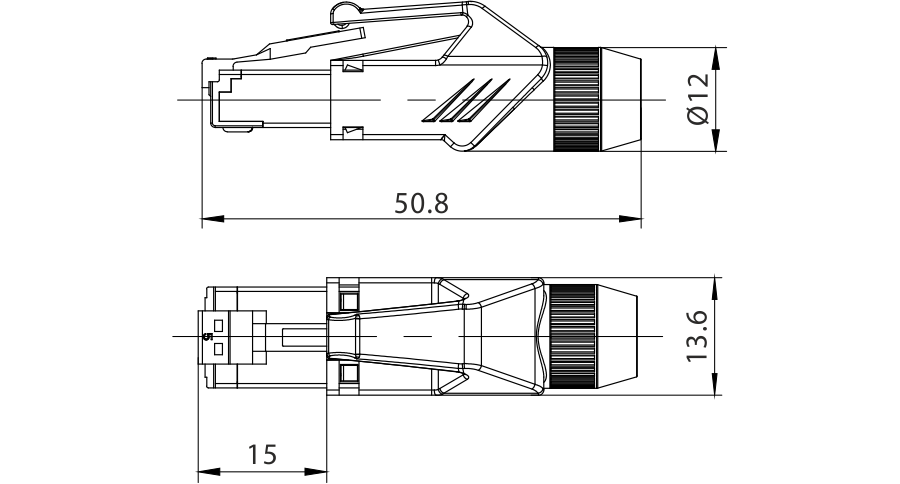

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)
Carton Volume
(m³)
RJ45C5E-PH 500 0.050
