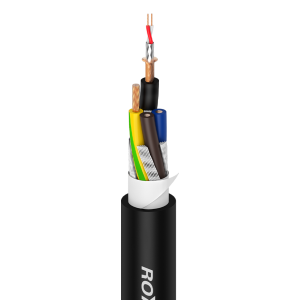

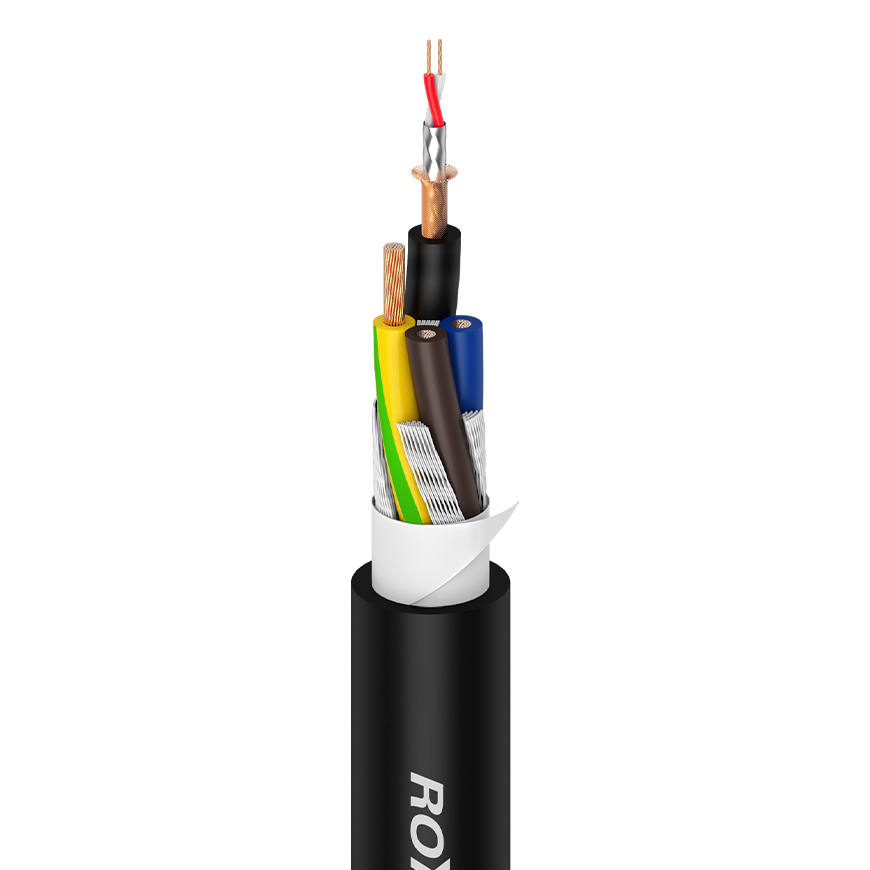

Professional Power and Audio Hybrid Cable
Small Diameter, Flexible Power Cable
| Total jacket, diameter | PVC 12.0 mm |
| Awg(Power cable) | 16 |
| No. of power conductors (Power cable) | 3 x 1.50 mm² |
| Copper strand per conductor | 192 x 0.10 mm |
| Insulation material (Power cable) | PVC |
| Jacket, diameter(Signal cable) | PVC 4.0 mm |
| AWG(Signal cable) | 24 |
| No. of inner conductors(Signal cable) | 2 x 0.22 mm² |
| Copper strand per conductor(Signal cable) | 28 x 0.10 mm |
| Insulation material(Signal cable) | LDPE |
| Shielding(Signal cable) | 48 x 0.10mm+ aluminum-plastics tape |
| Temperature range | Min. -20 °C |
| Temperature range | Max. +70 °C |
| Packaging | 100m/roll |
| Order Code | Length | Carton QTY (PCS) |
Carton Volume (m³) |
| PSC115L1000BK | 100 m/Roll |
| Power cable | |
| Capac. cond./cond. | 123 pF/m |
| Capac. cond./shield. | N/A |
| Cond. resistance | 12 mΩ/m |
| Shield resistance | N/A |
| Signal cable | |
| Capac. cond./cond. | 67 pF/m |
| Capac. cond./shield. | 138 pF/m |
| Cond. resistance | 82 mΩ/m |
| Shield resistance | 48 mΩ/m |
