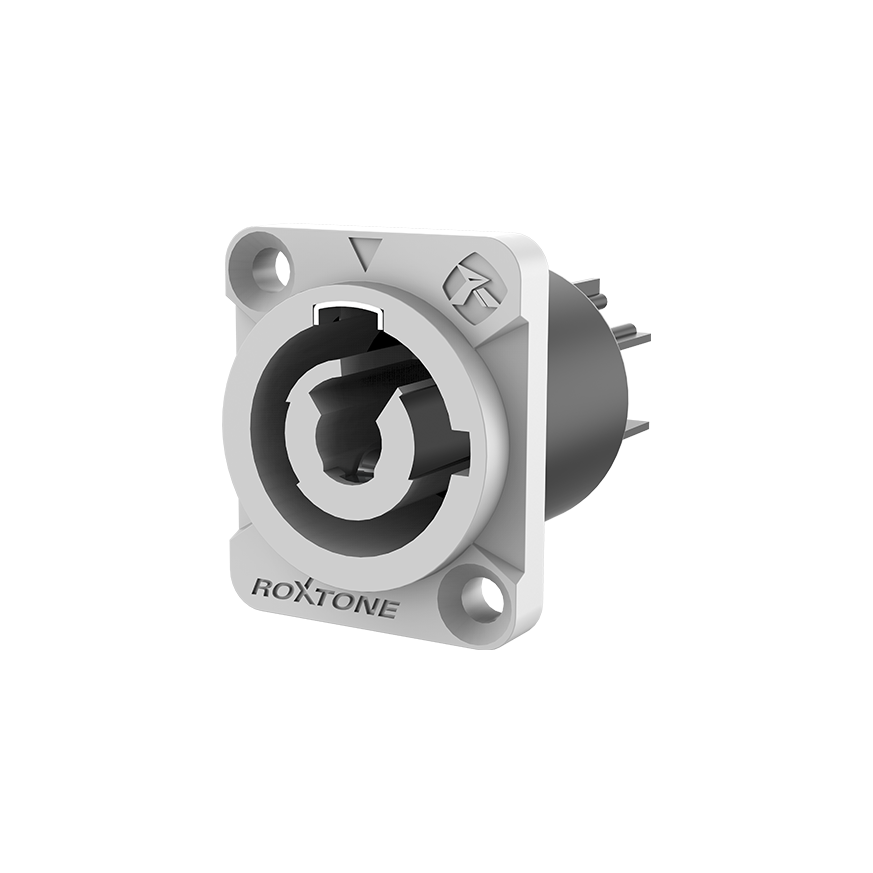

RAC3MPO

Power Link Series Power out Socket

RAC3MPO

Product Type: Power Connectors

Features

  • Lockable 3 pole equipment(AC) connectors
  • Thicker silver plated brass and beryllium brozne contacts supply excellent contact and conduction properties
  • Replaceable color ring on connector indicates cable of different equipment or length, easy for works
  • Dust-proof design of the bushing makes the additional protection
  • Raw material according with UL-V0 for safe use
  • 2 pieces strain-relief clamps are provided for different cable diameter
  • Patent-protected

Technical Data

Housing PA6 30%GF
Contacts Beryllium Bronze
Contacts plating Silver
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Fammability UL V-0

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)
RAC3MPO 400 0.066

Application & Assembly Instruction

APPLICATION & ASSEMBLY INSTRUCTION_POWERLINK

pdf - 120MB

related products

RAC3FCO

RAC3FCO

Power Link Series Power out Connector

RAC3MPI

RAC3MPI

Power Link Series Power in Socket

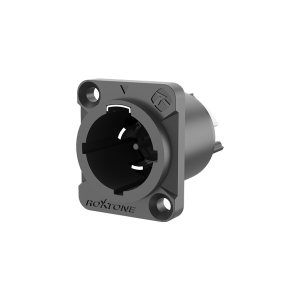

RAC3MPWP
