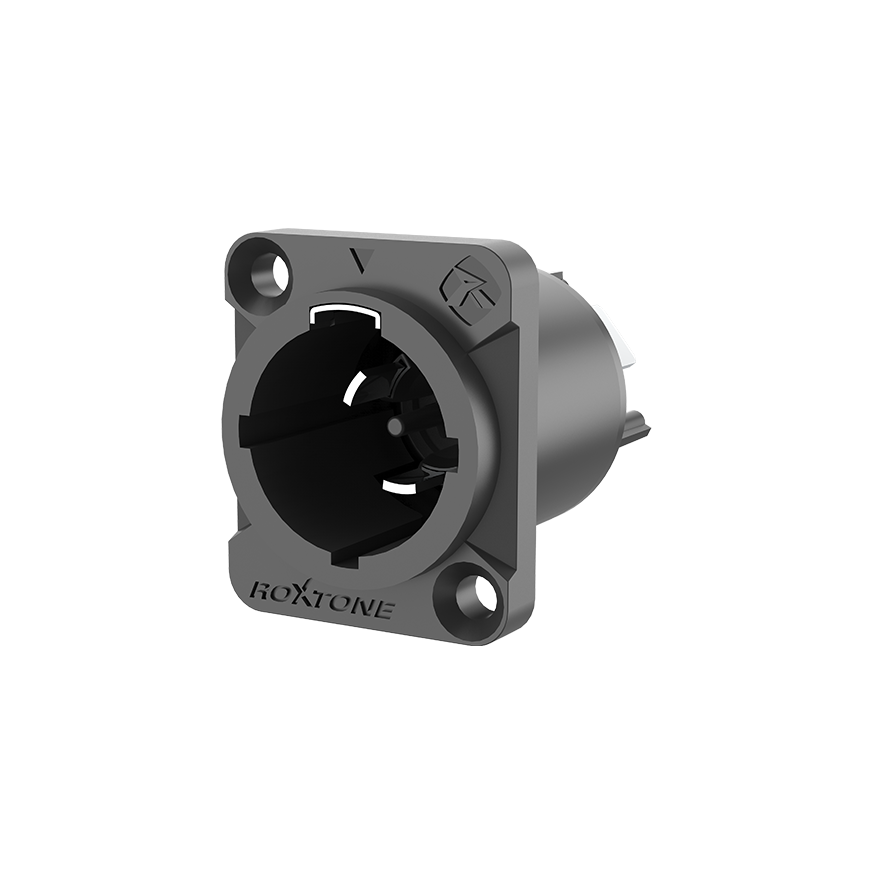

XROSSLINK series power socket - Waterproof IP65

RAC3MPWP

Product Type: Power Connectors

Features

  • Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen,lighting and other equipments
  • Thicker silver plated brass and beryllium bronze contacts supply excellent contact and conduction properties
  • Dust and water resistant according to IP65 in mated condition
  • Fast and easy twist lock system
  • Flame retardant materials create safer use
  • Glass fiber composite material, extremely robust and reliable
  • Dust resistant cover of socket protects non-use equipment(must be purchased separately)
  • ROXTONE brand engraved on the housing
  • Patent-protected

Technical Data

Housing PA66 30%GF
Contacts Bronze
Contacts plating Silver
Sealing ring Silicone
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Protection class(mated) IP65
Fammability UL V-0

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)
Carton Volume
(m³)
RAC3MPWP 400 0.066

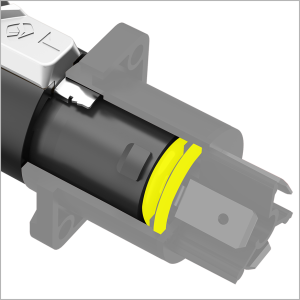

Application & Assembly Instruction
