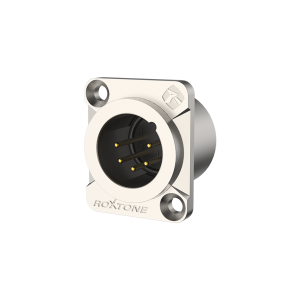

5 Pole Heavy-Duty Waterproof XLR Sockets - IP66

RX5FDWP

IP66 Waterproof heavy-duty XLR sockets
Matching works with any waterproof XLR connector
Full metal solid structure housing for long life using
Excellent shielding effect due to the full metal housing
Equipped with a separate grounding ring to provide better protection for equipment
Unique creative waterproof system supply the reliable and durable waterproof effect
Passed the testing of beyond 2,000 mating cycles, due to made from high-quality raw materials

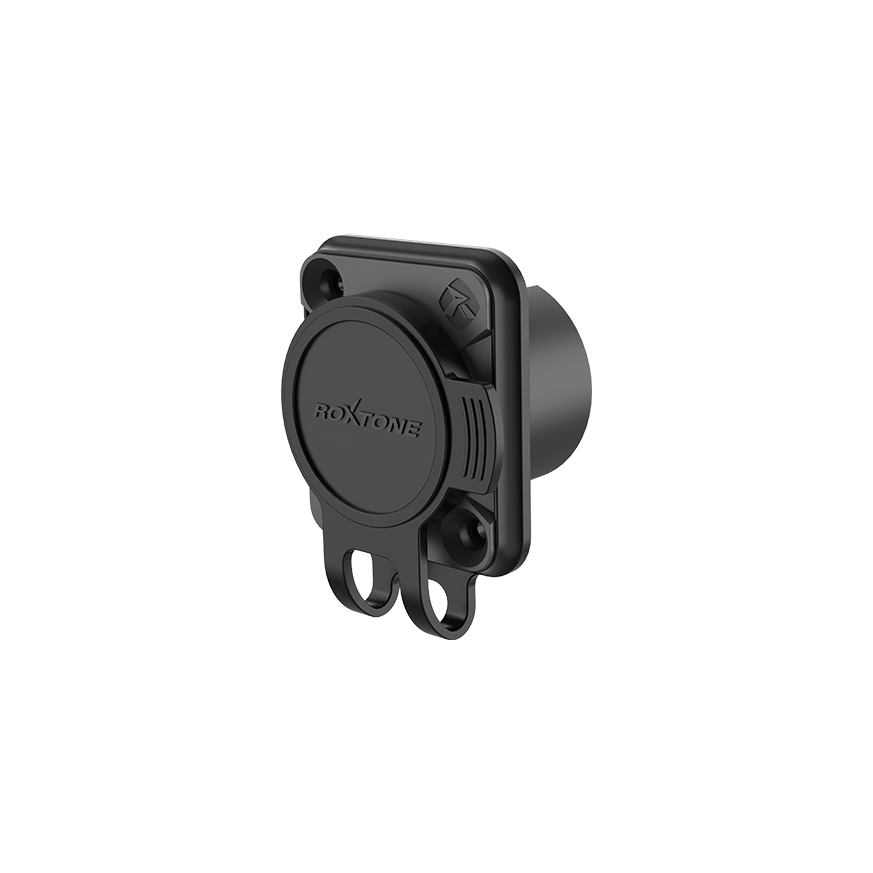

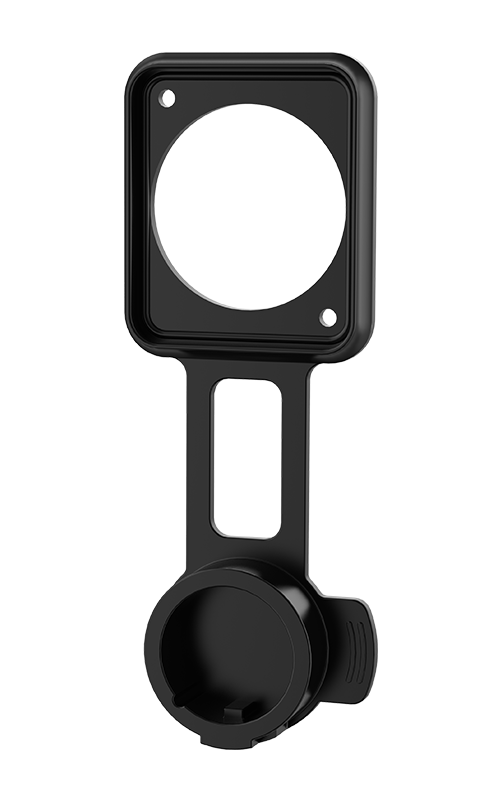

Dust resistant cover of socket protects non-use equipment (must be purchased separately)
Passed SGS IP66 testing, scan QR code for the test report
Invention patent-protected

Order Code	Carton QTY (PCS)	Carton Volume (m³)	Description

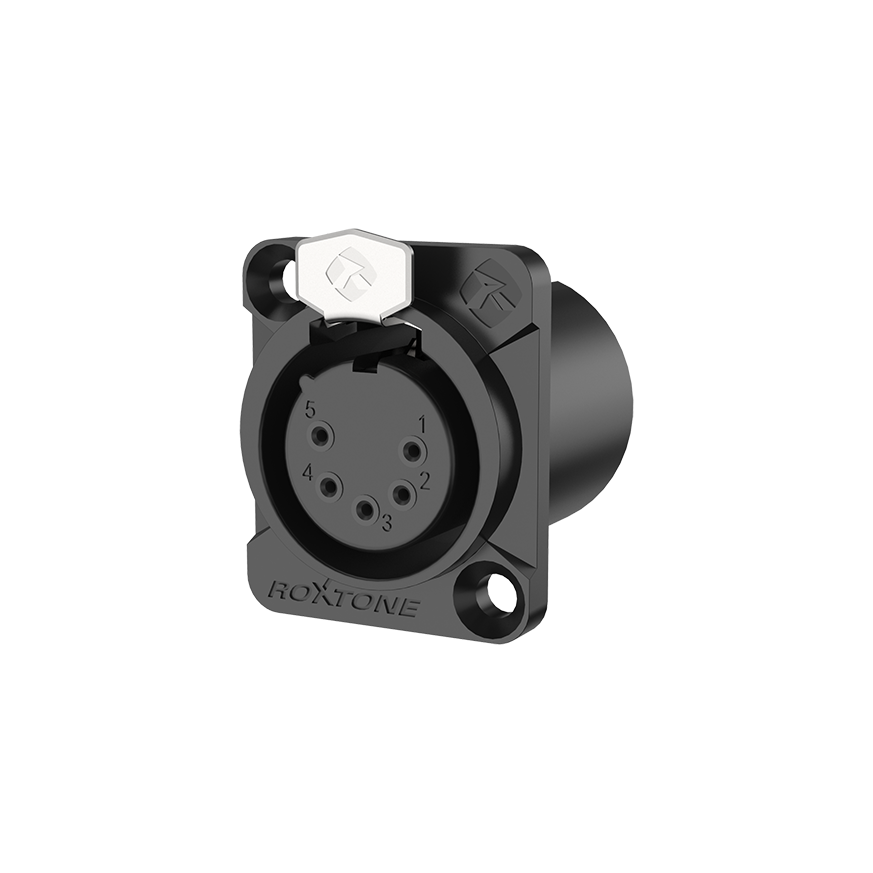

RX5FDWP-BG	300	0.050	5 pole XLR female socket, Black housing / Gold plated contacts

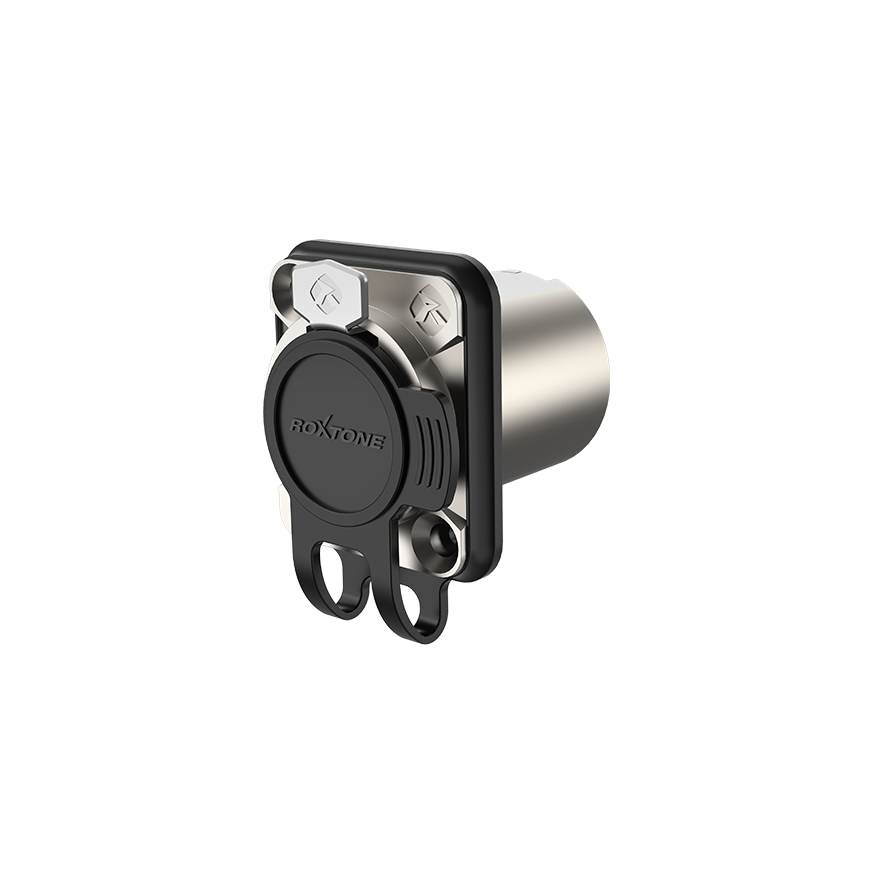

RX5FDWP-NG	300	0.050	5 pole XLR female socket, Nickel plated housing / Gold plated contacts
