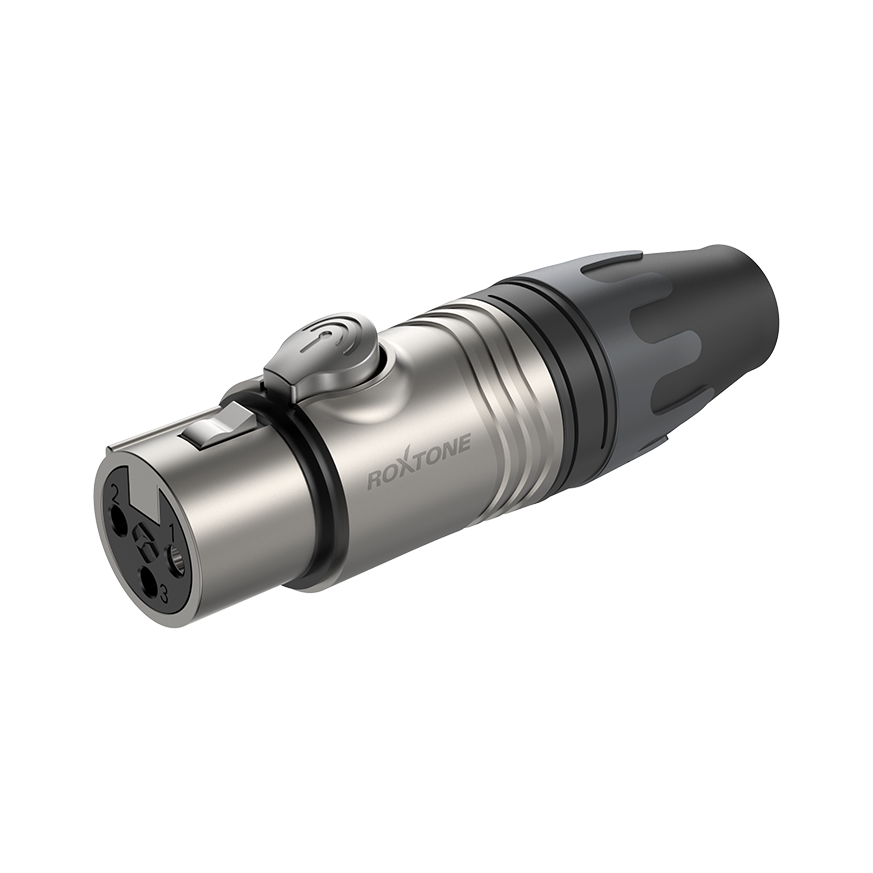

XF3

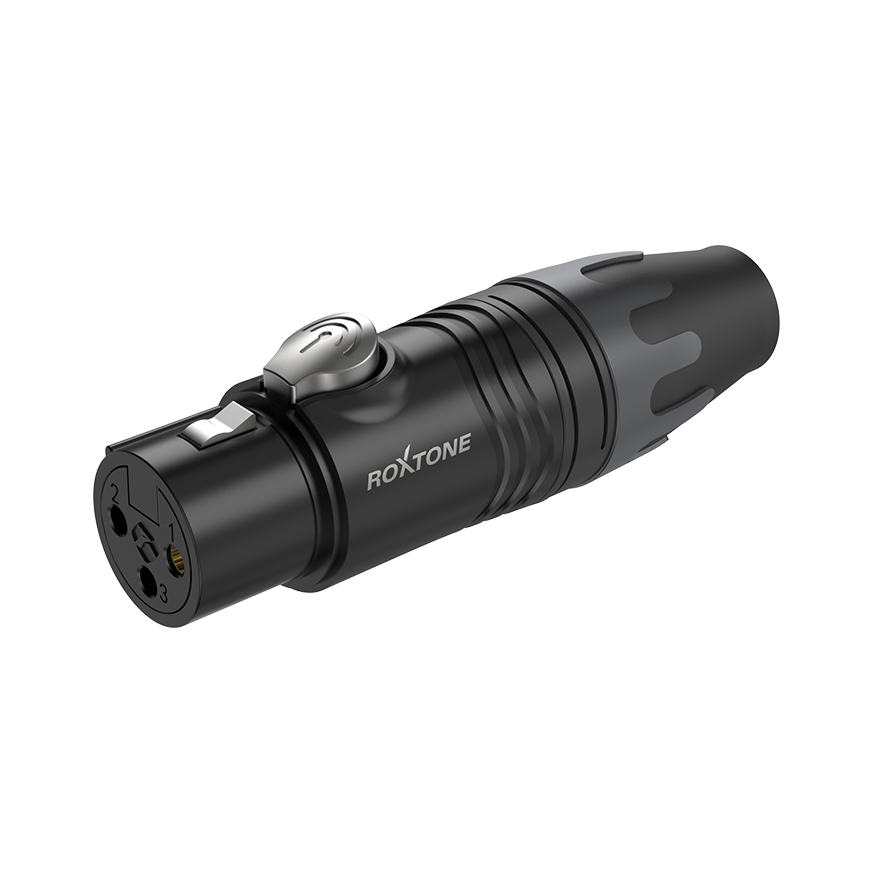

3 Pole XLR Female, Nickel Plated Housing / Black Housing

XF3

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Improved big button for latch lock
  • ROXTONE brand on the housing
  • Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 7mm
  • Patent-protected

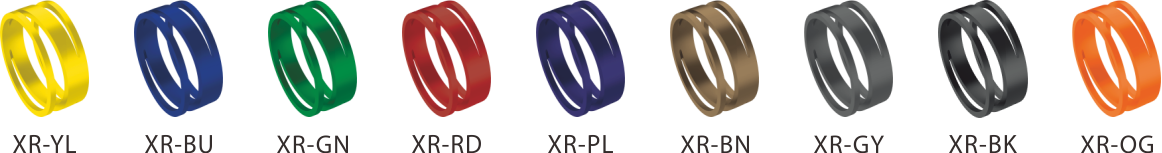

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PBT/PA6 30%GF
Contacts Bronze
Contacts plating Tin or Gold
Strain-relief clamp POM
Bushing PA+TPE
Coding ring PA6 30%GF

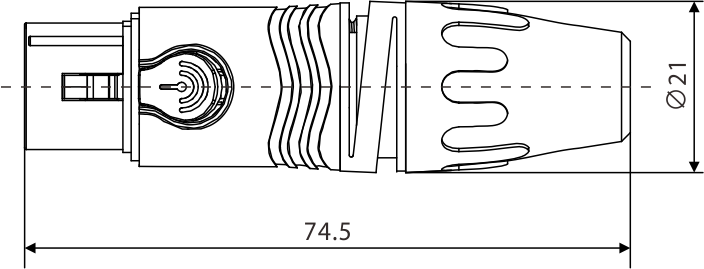

Engineering Drawing

Packaging Data

Order Code Carton QTY
(PCS)		 Carton Volume
(m³)		 Description
XF3NT 400 0.050 3 pole XLR female, Nickel plated
housing / Tin plated contacts
XF3BG 400 0.050 3 pole XLR female, Black housing /
Gold plated contacts

related products

MPDXX15

MPDXX15

Professional Power and DMX Hybrid Cable

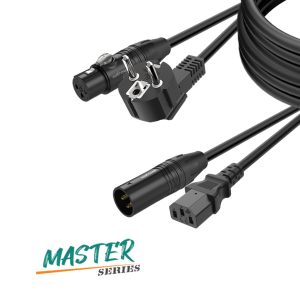

MPSEF15

MPSEF15

Professional Power and Audio Hybrid Cable

RX3F

RX3F

3 Pole XLR Female, Nickel Plated Housing / Black Housing

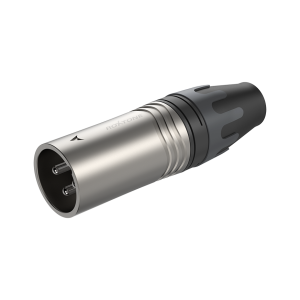

XM3
