XM3

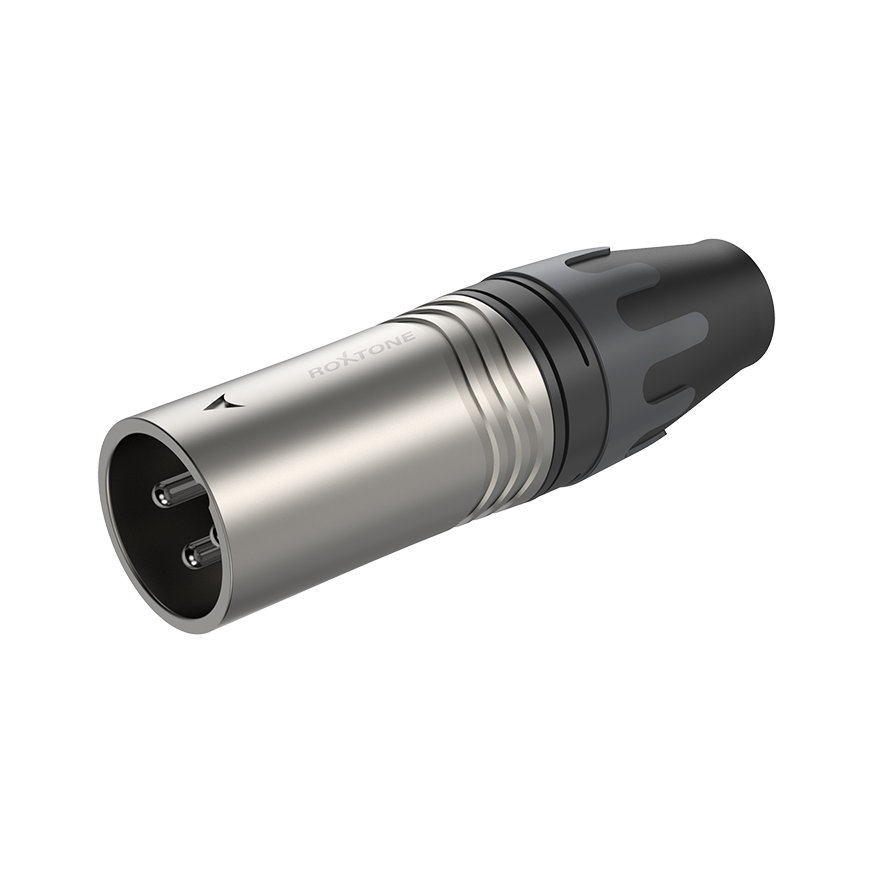

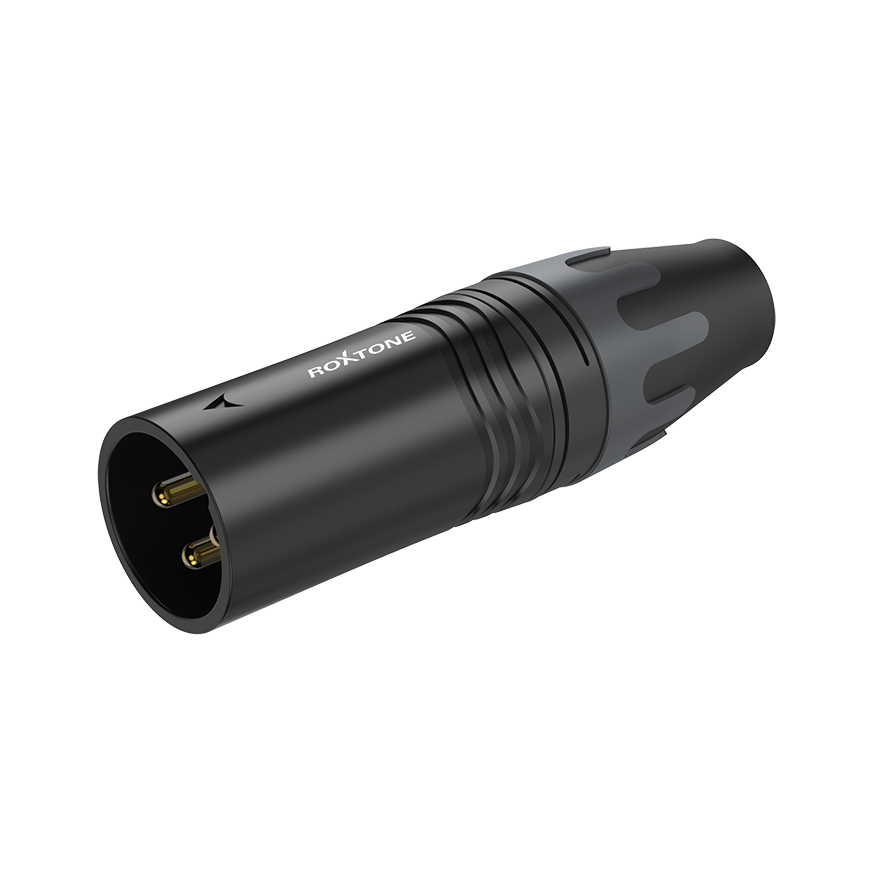

3 Pole XLR Male, Nickel Plated Housing / Black Housing

XM3

Features

  • Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
  • Without locking “window” makes the housing more strength
  • Special contacts pin with gear and fluting design to avoid moving
  • ROXTONE brand on the housing
  • Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 7mm
  • Patent-protected

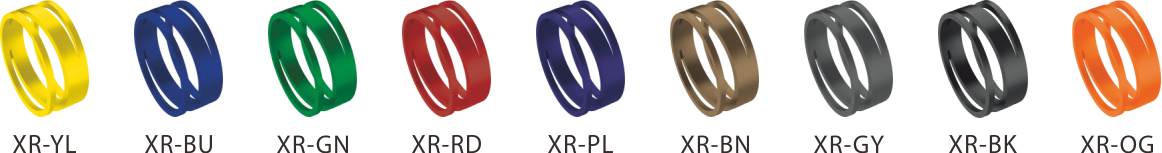

Available Color Rings

Technical Data

Housing Zinc alloy diecast
Insert PBT/PA6 30%GF
Contacts Brass
Contacts plating Tin or Gold
Strain-relief clamp POM
Bushing PA+TPE
Coding ring PA6 30% GF

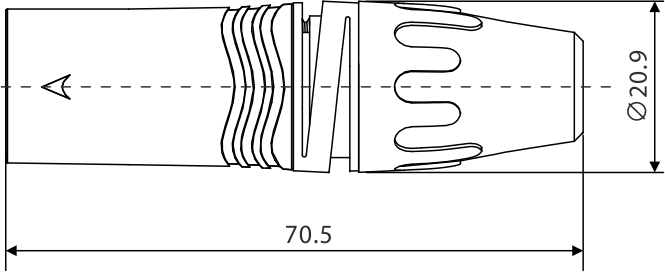

Engineering Drawing

Packaging Data


Order Code     Carton QTY
(PCS)		     Carton Volume
(m³)		 Description
XM3NT 400 0.050 3 pole XLR male, Nickel plated housing / Tin plated contacts
XM3BG 400 0.050 3 pole XLR male, Black housing / Gold plated contacts
